Distribution prediction of the sepiolite-containing succession in the Member 1 of Maokou Formation in Sichuan Basin based on multi-gradient boosting algorithm

doi:10.7605/gdlxb.2026.048

Journal of Palaeogeography（Chinese Edition） ›› 2026, Vol. 28 ›› Issue (1): 381-397. doi: 10.7605/gdlxb.2026.048

• NEW TECHNOLOGY AND NEW METHODS • Previous Articles Next Articles

Distribution prediction of the sepiolite-containing succession in the Member 1 of Maokou Formation in Sichuan Basin based on multi-gradient boosting algorithm

SONG Jinmin¹(), REN Shan¹, LIU Shugen¹^,², WEN Long³, LI Zhiwu¹, LUO Bing³, LI Keran¹, YANG Di¹, WANG Hua³, YE Yuehao¹, JIN Xin¹, ZHANG Zhaoyi¹, GUO Jiaxin¹, SHAO Xingpeng¹, ZHANG Zubing¹

1 State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation,Chengdu University of Technology,Chengdu 610059,China
2 Xihua University,Chengdu 610039,China
3 PetroChina Southwest Oil & Gas Field Company,Chengdu 610051,China

Received:2025-08-29 Revised:2025-10-23 Online:2026-02-01 Published:2026-02-09
About author:
SONG Jinmin,born in 1983,Ph.D.,is a professor at Chengdu University of Technology. He is specialises in research and teaching within the field of petroleum reservoir geology. E-mail: songjinmin2012@cdut.edu.cn.
Supported by:
National Naturral Science Foundation of China(42572132); National Naturral Science Foundation of China(U24B6001); National Science and Technology Major Project(2025ZD1400403)

基于多梯度提升器算法的四川盆地茅口组一段含海泡石层系分布预测^*

宋金民¹(), 任杉¹, 刘树根¹^,², 文龙³, 李智武¹, 罗冰³, 李柯然¹, 杨迪¹, 汪华³, 叶玥豪¹, 金鑫¹, 张钊益¹, 郭嘉欣¹, 邵兴鹏¹, 张祖兵¹

1 成都理工大学油气藏地质及开发工程全国重点实验室,四川成都 610059
2 西华大学,四川成都 610039
3 中国石油西南油气田公司,四川成都 610051

作者简介:
宋金民,男,1983年生,博士,成都理工大学教授,主要从事油气储层地质的研究和教学工作。E-mail: songjinmin2012@cdut.edu.cn。
基金资助:
*国家自然科学基金项目(42572132); 国家自然科学基金项目(U24B6001); 国家科技重大专项(2025ZD1400403)

Abstract

Abstract:

The sepiolite-containing succession in the Member 1 of the Middle Permian Maokou Formation in the Sichuan Basin exhibit self-generation and self-accumulation characteristics,positioning them as a promising new frontier for the exploration of unconventional gas reservoirs. However,the identification and predictive distribution of these strata are still underdeveloped. This study utilizes core samples,thin sections,X-ray diffraction(XRD)analysis,well logging,and mud logging data,performing sensitivity analysis to select six key well log curves: CNL,DEN,GR,RT,RXO,and AC. The SMOTE algorithm is employed to address feature imbalance. The workflow for predicting sepiolite-containing succession based on multi-gradient boosting algorithms is as follows: (1)The CatBoost algorithm is used for binary classification to determine the presence of sepiolite;(2)CatBoost performs multi-class classification to categorize the morphology of sepiolite-containing succession;(3)XGBoost is applied for regression analysis to predict the talc content in the sepiolite-containing succession;(4)The effective thickness of sepiolite-containing succession is identified based on talc content. The sepiolite-containing succession in the Member 1 of Maokou Formation primarily exhibit three morphologies: spotty,lenticular,and layered. Prediction results indicate that spotty talc is mainly developed in the northern and central southern regions of Sichuan Basin,with thickness increasing toward the northeast;lenticular talc is predominantly distributed in the western Sichuan region;and layered talc is mainly found in north western,central and southern Sichuan Basin. Overall,the sepiolite-containing succession in the Member 1 of Maokou Formation show a distribution pattern of‘thicker in the northeast,thinner in the southwest.’The Tongjiang-Changshou intracratonic sag area and the Hechuan-Weiyuan-Luzhou region serve as the sedimentary centers for the effective thickness of sepiolite-containing succession,providing a basis for future exploration and deployment in these areas.

Key words: gradient boosting machines, machine-learning, sepiolite containing succession, Member 1 of Maokou Formation, Permian, Sichuan Basin

摘要：

四川盆地中二叠统茅口组一段含海泡石层系具有自生自储、源内成藏的特点,为碳酸盐岩非常规气藏勘探的新领域,目前对其的识别和分布预测较为薄弱。基于岩心、薄片、XRD、测井与录井资料,通过敏感性分析选取CNL、DEN、GR、RT、RXO和AC 6条测井曲线,利用SMOTE算法处理特征平衡性差异,提出含海泡石层系基于多梯度提升器算法的综合预测流程。具体如下: (1)CatBoost算法以滑石作为预测分析载体,对是否含海泡石作二分类判断; (2)CatBoost算法对含海泡石层系进行滑石产状的多分类判断; (3)XGBoost算法对含海泡石层系的滑石含量进行回归预测; (4)识别不同产状含海泡石层系的有效厚度。茅一段含海泡石层系(滑石)主要发育斑点状、透镜状和层状3种产状。预测结果显示,斑点状滑石发育在川北和川中—蜀南地区,厚呈向北东增大趋势; 透镜状滑石主要分布在川西地区; 层状滑石见于川西北、川中和蜀南地区。四川盆地茅一段含海泡石层系整体具有“北东厚、南西薄”的分布特征,通江—长寿凹陷地区为含海泡石层系的沉积中心,合川—威远—泸州地区为含海泡石层系优势发育区,这为下一步的勘探部署提供了依据。

关键词: 梯度提升器算法, 机器学习, 含海泡石层系, 茅一段, 二叠系, 四川盆地

CLC Number:

P588.245

SONG Jinmin, REN Shan, LIU Shugen, WEN Long, LI Zhiwu, LUO Bing, LI Keran, YANG Di, WANG Hua, YE Yuehao, JIN Xin, ZHANG Zhaoyi, GUO Jiaxin, SHAO Xingpeng, ZHANG Zubing. Distribution prediction of the sepiolite-containing succession in the Member 1 of Maokou Formation in Sichuan Basin based on multi-gradient boosting algorithm[J]. Journal of Palaeogeography（Chinese Edition）, 2026, 28(1): 381-397.

宋金民, 任杉, 刘树根, 文龙, 李智武, 罗冰, 李柯然, 杨迪, 汪华, 叶玥豪, 金鑫, 张钊益, 郭嘉欣, 邵兴鹏, 张祖兵. 基于多梯度提升器算法的四川盆地茅口组一段含海泡石层系分布预测^*[J]. 古地理学报, 2026, 28(1): 381-397.

/ / Recommend / Download Citations

URL: http://www.gdlxb.cn/EN/10.7605/gdlxb.2026.048

http://www.gdlxb.cn/EN/Y2026/V28/I1/381

Figures/Tables 14

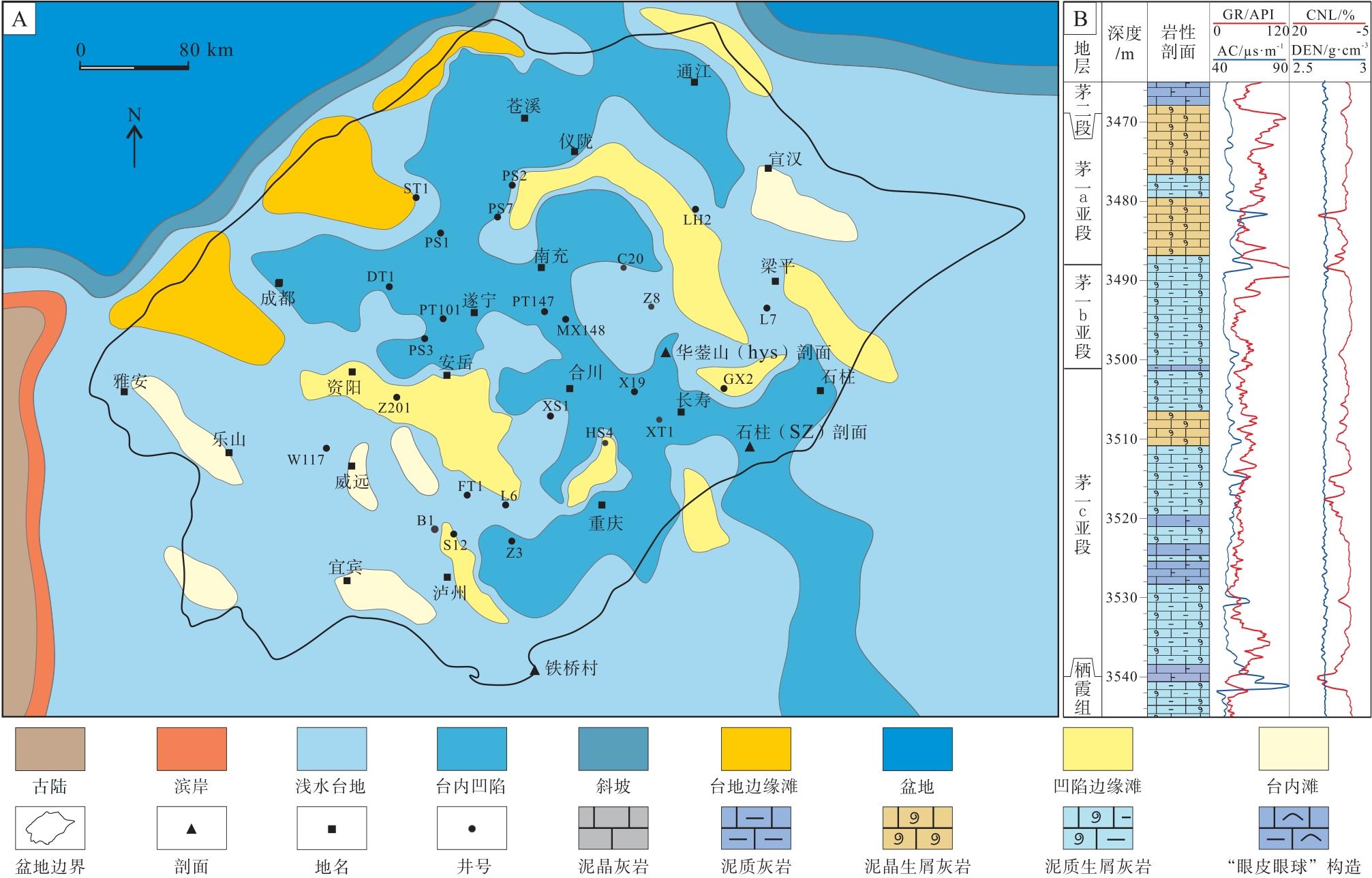

Fig.1 Sedimentary facies map(A)and integrated stratigraphic column(B)of the Member 1 of Maokou Formation of Sichuan Basin(modified from Song et al., 2024b)

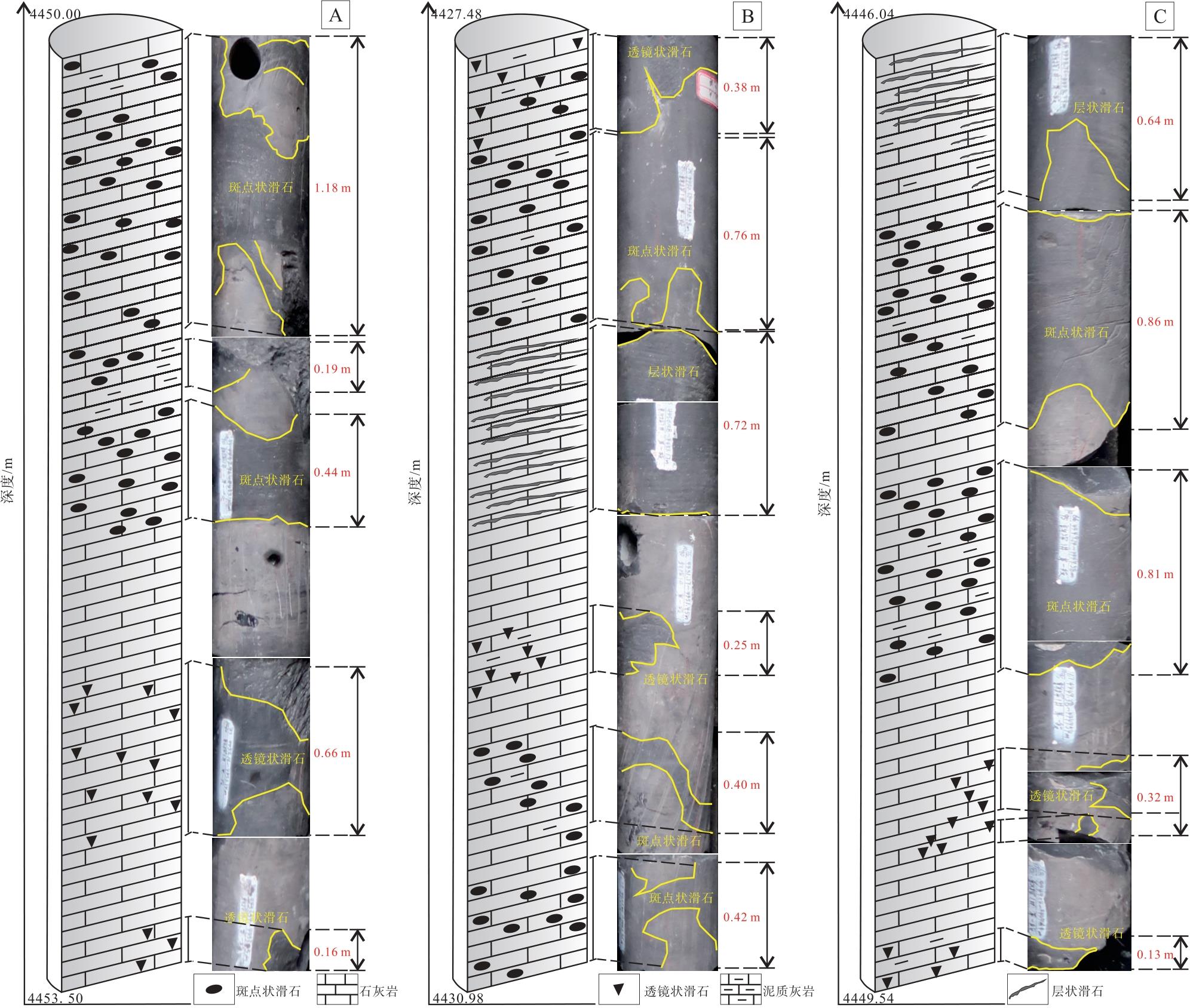

Fig.2 Macro-developmental characteristics of sepiolite (talc) containing formation in the Member 1 of Maokou Formation of Well XT1 in Sichuan Basin

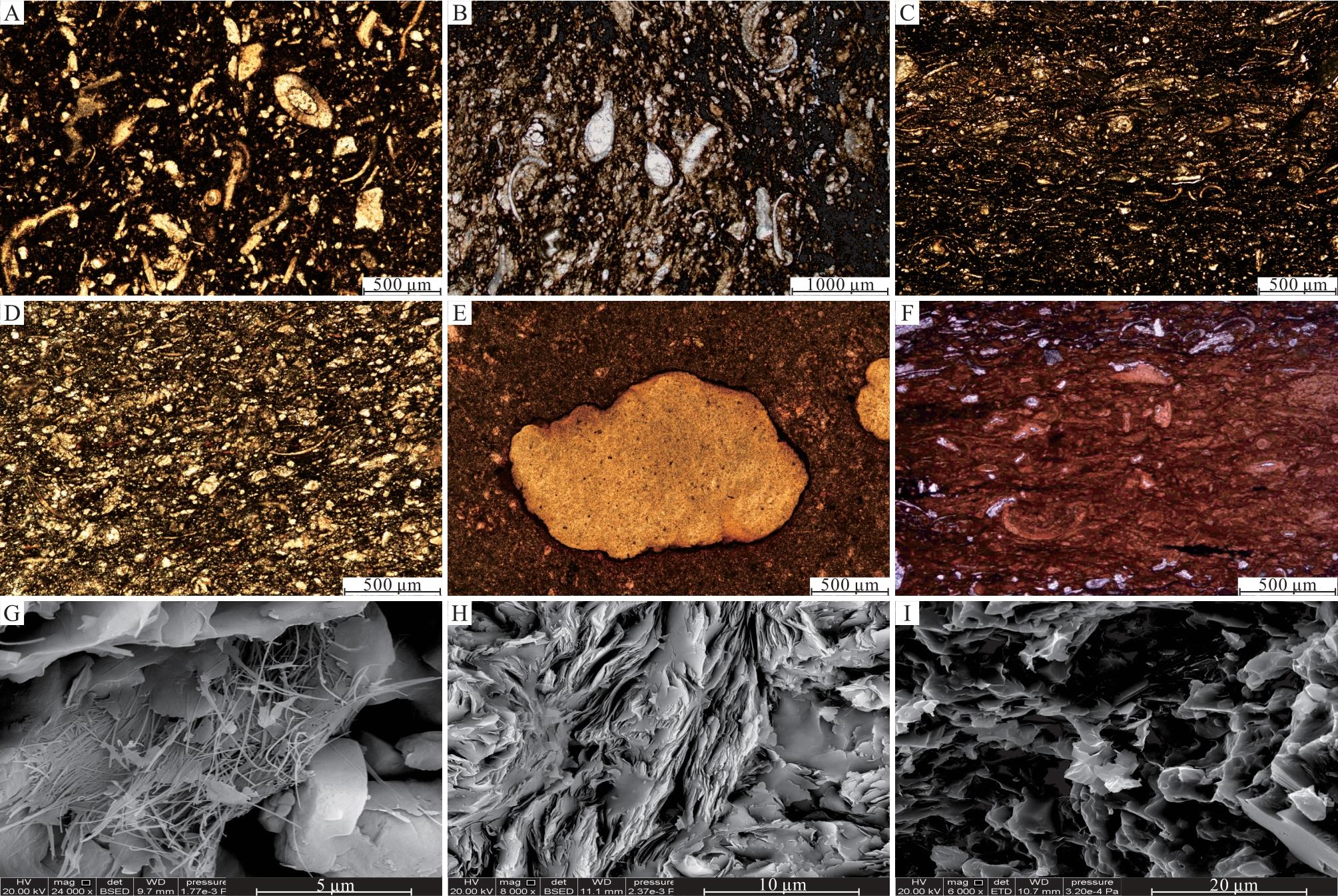

Fig.3 Petrological characteristics of the sepiolite containing formation in the Member 1 of Maokou Formation of Sichuan Basin

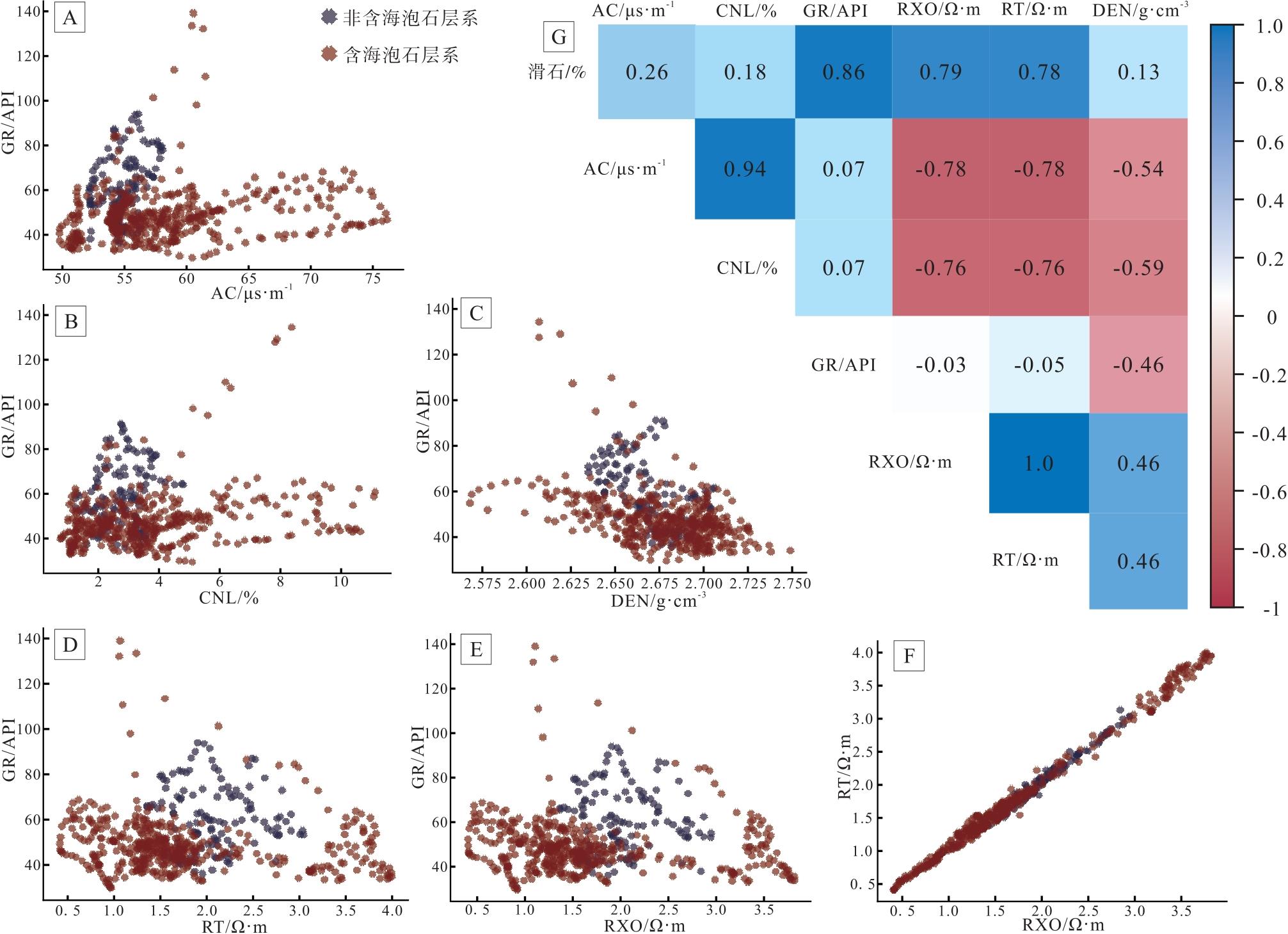

Fig.4 Plot of logging features versus sepiolite (talc)containing formation

Table 1 Statistics on completeness of different logging curves of sample wells and wells to be predicted in the Member 1 of Maokou Formation of Sichuan Basin

类型	不同测井曲线完整度
类型	GR	AC	CNL	DEN	RT	RXO	SP	PE	MSFL	CAL
样本井	0.99	0.98	0.97	0.92	0.91	0.91	0.85	0.64	0.43	0.30
待预测井	0.99	0.97	0.96	0.93	0.90	0.90	0.82	0.70	0.38	0.28

Table 2 Statistics of scoring results of different logging curves by random forest scorer in the Member 1 of Maokou Formation of Sichuan Basin

测井类型	GR	AC	CAL	DEN	RT	RXO	SP	PE	MSFL	CNL
分数	0.54	0.21	-0.034	0.24	0.21	0.21	0.34	0.42	-0.17	0.28

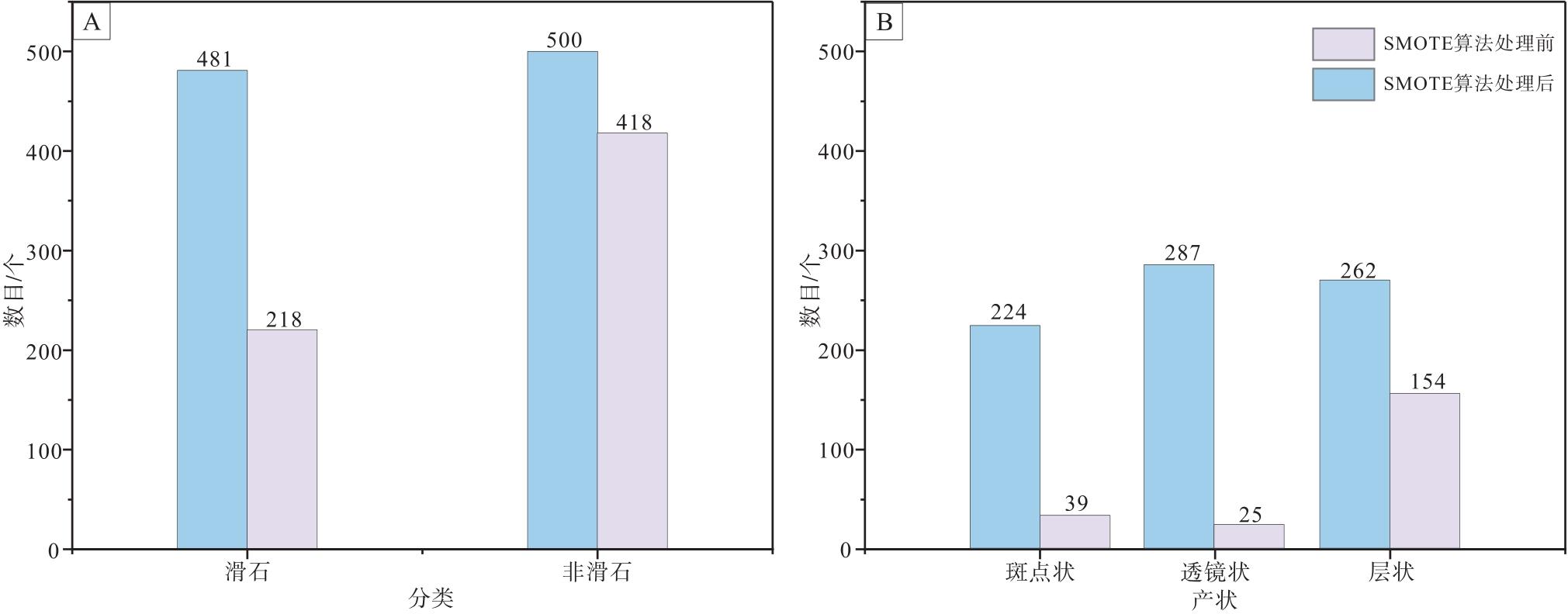

Fig.5 Distribution of sample data before and after the introduction of SMOTE algorithm

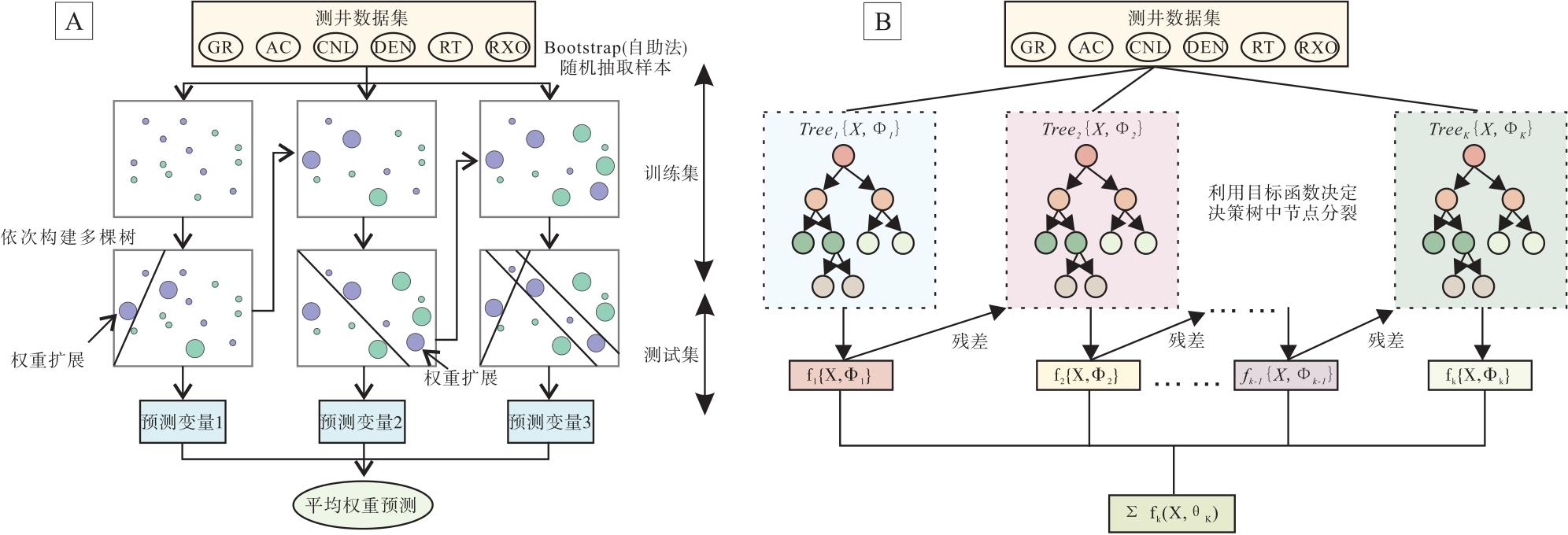

Fig.6 Schematic diagram of the model structure

Table 3 Comparison of performance results of different machine learning methods

模型类型	二分类判定滑石存在性问题				滑石产状多分类问题				滑石含量回归问题
模型类型	训练误差	验证误差	训练准确度	验证准确度	训练误差	验证误差	训练准确度	验证准确度	训练误差	验证误差
CatBoost	0.01	0.03	0.98	0.97	0.01	0.02	0.96	0.92	0.25	0.24
XGBoost	0.01	0.03	0.98	0.97	0.07	0.11	0.92	0.91	0.07	0.05
LightGBM	0.01	0.02	0.98	0.98	0.45	0.48	0.74	0.68	0.29	0.27
随机森林	0.18	0.18	0.54	0.54	0.84	0.85	0.32	0.31	0.23	0.21
ANN	0.21	0.14	0.92	0.95	1.01	0.97	0.41	0.41	0.64	0.44
SVM	/	0.02	/	0.95	/	0.60	/	0.62	/	0.38
KNN	/	0.20	/	0.65	/	0.87	/	0.11	/	1.27
贝叶斯	/	0.73	/	0.25	/	0.92	/	0.08	/	/

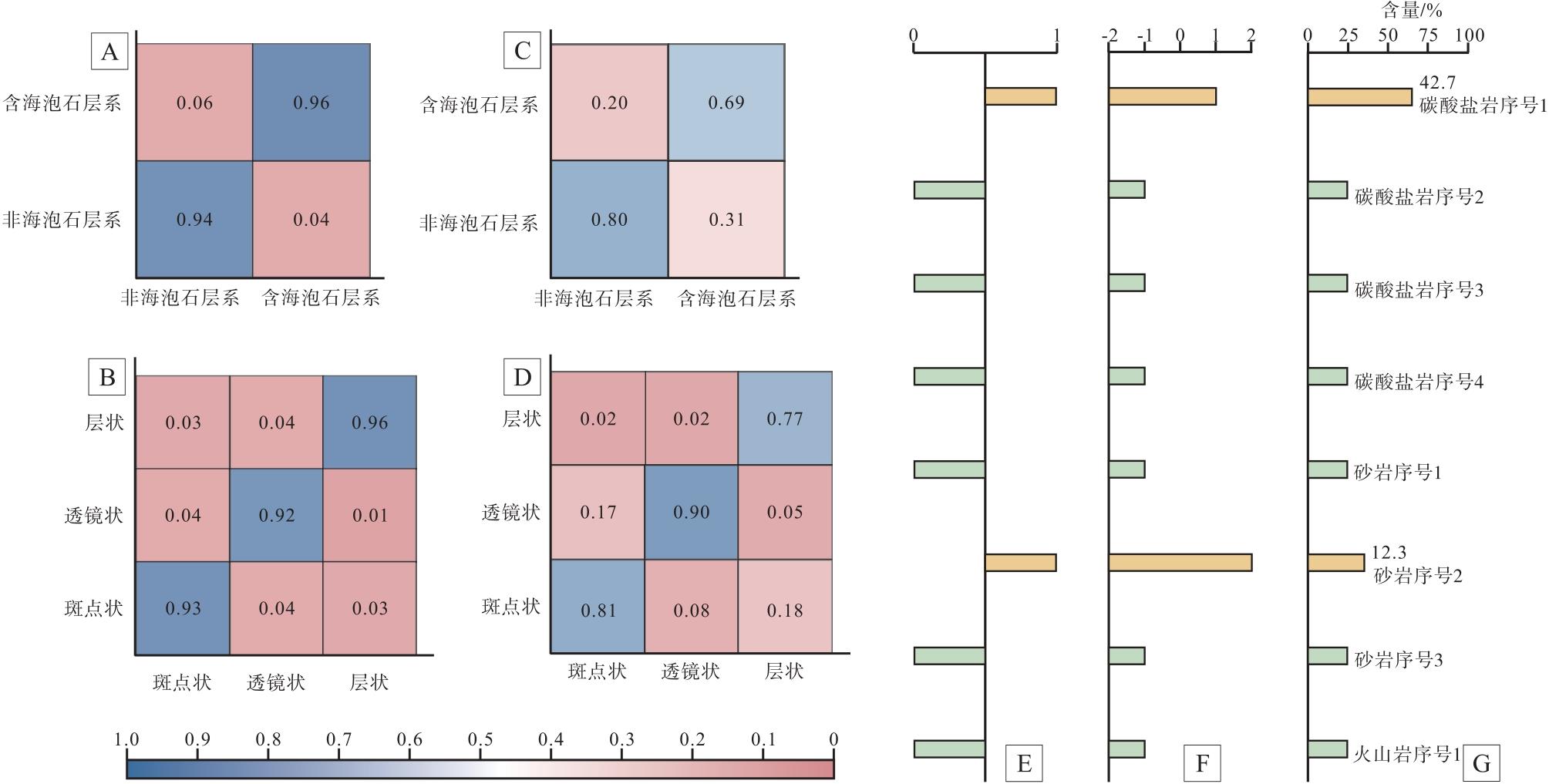

Fig.7 Validation results with reserved test set data(the abscissa represents actual attributes,and the ordinate represents predicted attributes in the confusion matrix)

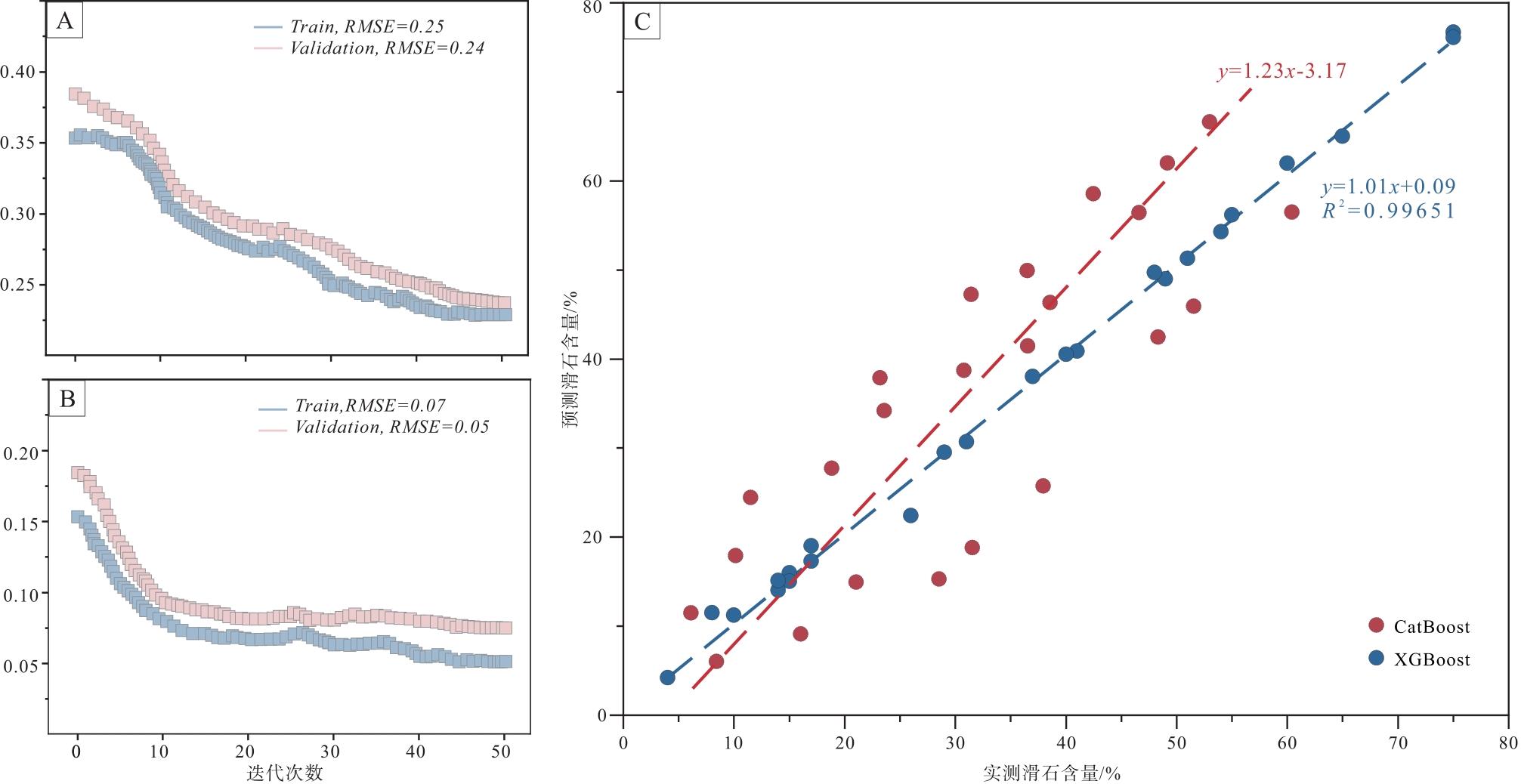

Fig.8 Comparison of generalization capabilities of various regression models in predicting talc content

Table 4 Verification well comparison accuracy

序号	井代号	岩石学分析验证/%		滑石含量 XRD结果验证/%	总准确率 /%
序号	井代号	滑石存在性二分类	滑石产状多分类	滑石含量 XRD结果验证/%	总准确率 /%
1	YB7	91.24	90.54	89.41	90.1
2	HB11	78.56	77.98	81.72	79.4
3	LX2	84.17	82.34	76.56	81.0
4	QL16	98.62	97.53	92.14	96.1
5	W118	79.43	78.21	84.99	80.9
6	JT1	87.91	85.67	80.37	84.7
7	CT1	92.08	91.56	93.65	92.4
8	LT1	76.34	75.64	77.89	76.3
9	NC1	93.77	91.12	88.23	91.0
10	LS1	81.56	80.43	79.12	80.0
11	W117	95.43	94.21	91.38	93.0
12	FS1	89.72	88.65	78.77	85.4

Fig.9 Single-well verification chart of sepiolite content prediction in the Member 1 of Maokou Formation of Well HB1

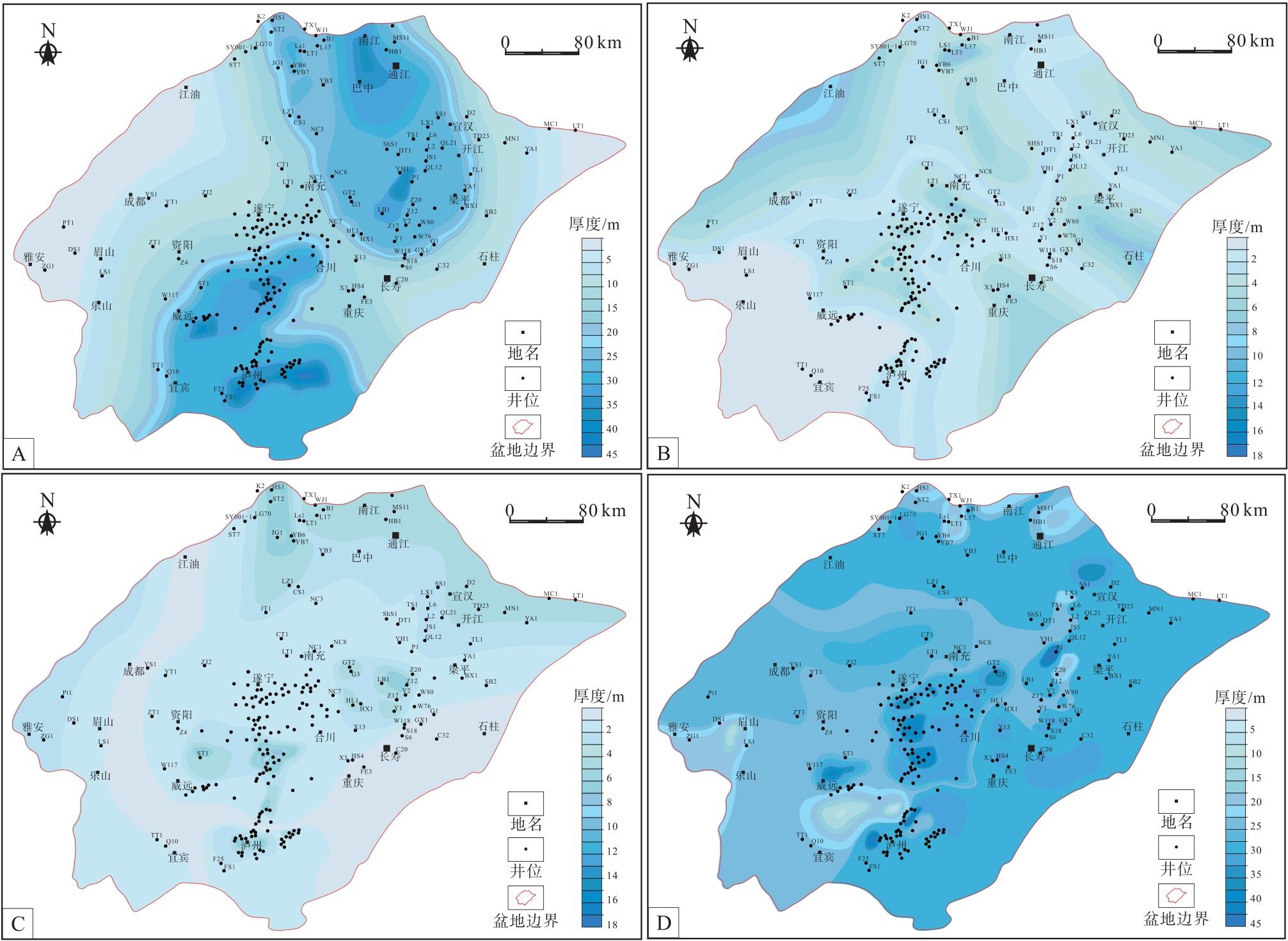

Fig.10 Isopach of sepiolite-containing strata with different occurrences of the Member 1 of Maokou Formation in Sichuan Basin
