Quantitative characterization of reservoir space in the first member of Maokou Formation,Southern Sichuan Basin

doi:10.7605/gdlxb.2025.059

Journal of Palaeogeography（Chinese Edition） ›› 2025, Vol. 27 ›› Issue (5): 1104-1118. doi: 10.7605/gdlxb.2025.059

• PALAEOGEOGRAPHY AND MINERAL RESOURCES • Previous Articles Next Articles

Quantitative characterization of reservoir space in the first member of Maokou Formation,Southern Sichuan Basin

YOU Donghua¹(), ZHANG Liyu¹, LI Rong², SONG Xiaobo², YU Lingjie¹, ZHOU Lingfang¹, JIANG Xiaoqiong¹

1 Wuxi Research Institute of Petroleum Geology, Research Institute of Petroleum Exploration and Production, SINOPEC, Jiangsu Wuxi 214126, China
2 Research Institute of Exploration and Development, Southwest Oil and Gas Company,SINOPEC, Chengdu 610041, China

Received:2024-10-07 Revised:2025-02-09 Online:2025-10-01 Published:2025-09-30
About author:
YOU Donghua,born in 1980,an associate researcher,is engaged in research on carbonate reservoir. E-mail: youdh.syky@sinopec.com.
Supported by:
Enterprise Innovation and Development Joint Fund of National Natural Science Foundation of China(U24B6001); Enterprise Innovation and Development Joint Fund of National Natural Science Foundation of China(U19B6003); Scientific and Technological Project of Sinopec(P22214-3); Scientific and Technological Project of Sinopec(P22073)

川南地区茅口组一段储集空间定量表征^*

尤东华¹(), 张力钰¹, 李蓉², 宋晓波², 俞凌杰¹, 周凌方¹, 蒋小琼¹

1 中国石化石油勘探开发研究院无锡石油地质研究所, 江苏无锡 214126
2 中国石化西南油气分公司勘探开发研究院, 四川成都 610041

作者简介:
尤东华,男,1980年生,博士,副研究员,主要从事碳酸盐岩储层地质学研究。E-mail: youdh.syky@sinopec.com。
基金资助:
*国家自然科学基金企业创新发展联合基金(U24B6001); 国家自然科学基金企业创新发展联合基金(U19B6003); 中国石油化工股份有限公司科技项目(P22214-3); 中国石油化工股份有限公司科技项目(P22073)

Abstract

Abstract:

The first member of the Permian Maokou Formation in the Sichuan Basin,characterized by argillaceous carbonate rocks that exhibit both source and reservoir properties,making it a significant area for exploration. This study focuses on the development and characteristics of various pore types within these rocks. In this study,the qualitative and quantitative characterizations of pore types and their correlations and controlling factors were studied in detail. This was achieved through the measurement of porosity,X-ray diffraction analysis of whole-rock minerals,and total organic carbon(TOC)content analysis of 60 core samples from three wells in the southern Sichuan Basin. Additionally,qualitative observations were performed using argon ion polishing scanning electron microscopy on selected samples. Quantitative results indicate that samples from wells GS1 and JH1 are predominantly composed of organic-related pores,whereas samples from well TY1 exhibit substantial contributions from both clay mineral-related and organic-related pores. Statistical analysis reveals that when clay mineral content ranges between 15% and 50%,and TOC content exceeds 1%,the highest number of samples with porosity greater than 2% is observed. For marlstone with low clay mineral content(<10%),pore development is primarily controlled by TOC content and the degree of organic pore development. A clear positive correlation exists between porosity and TOC content,with a correlation coefficient as high as 0.87. As clay mineral content increases,the contribution of clay mineral-related pores to total porosity becomes more significant. Overall,the development of argillaceous carbonate reservoir space in the first member of the Maokou Formation is primarily influenced by clay mineral and TOC content. These findings have important implications for evaluating regional differences in reservoir development.

Key words: argillaceous limestone, carbonate, quantitative characterization, Maokou Formation, Sichuan Basin

摘要：

二叠系茅口组一段是四川盆地重要的勘探领域之一,其以源储一体的泥质碳酸盐岩为典型特征,相关不同类型孔隙的发育程度是当前普遍关注的问题之一。通过对川南地区3口钻井取心段60件样品的孔隙度测定、全岩矿物X衍射分析、总有机碳含量分析与部分样品的氩离子抛光扫描电镜观察,开展不同类型孔隙相对贡献的定性与定量储层表征,并分析其之间的相关关系及控制因素对孔隙发育的影响。定量研究结果显示,GS1、JH1井样本以有机质相关孔隙为主,而TY1井样本黏土矿物相关孔隙与有机质相关孔隙均具有重要贡献。统计分析表明,黏土矿物含量介于15%~50%之间、TOC含量大于1%时,孔隙度超过2%的样本数最多; 对于低黏土矿物含量(<10%)的泥灰岩而言,其孔隙发育程度主要受总有机碳含量与有机孔发育程度的控制; 孔隙度与总有机碳含量之间呈正相关,相关系数高达0.87; 随着黏土矿物含量的增加,黏土矿物相关孔隙对总孔隙度的贡献明显提高。四川盆地川南地区茅口组一段泥质碳酸盐岩储集空间的发育主要受黏土矿物与总有机碳含量的控制,这一认识对进一步评价不同地区储集层发育的差异性具有重要意义。

关键词: 泥质灰岩, 碳酸盐岩, 定量表征, 茅口组, 四川盆地

CLC Number:

P588.24+5

YOU Donghua, ZHANG Liyu, LI Rong, SONG Xiaobo, YU Lingjie, ZHOU Lingfang, JIANG Xiaoqiong. Quantitative characterization of reservoir space in the first member of Maokou Formation,Southern Sichuan Basin[J]. Journal of Palaeogeography（Chinese Edition）, 2025, 27(5): 1104-1118.

尤东华, 张力钰, 李蓉, 宋晓波, 俞凌杰, 周凌方, 蒋小琼. 川南地区茅口组一段储集空间定量表征^*[J]. 古地理学报, 2025, 27(5): 1104-1118.

/ / Recommend / Download Citations

URL: http://www.gdlxb.cn/EN/10.7605/gdlxb.2025.059

http://www.gdlxb.cn/EN/Y2025/V27/I5/1104

Figures/Tables 10

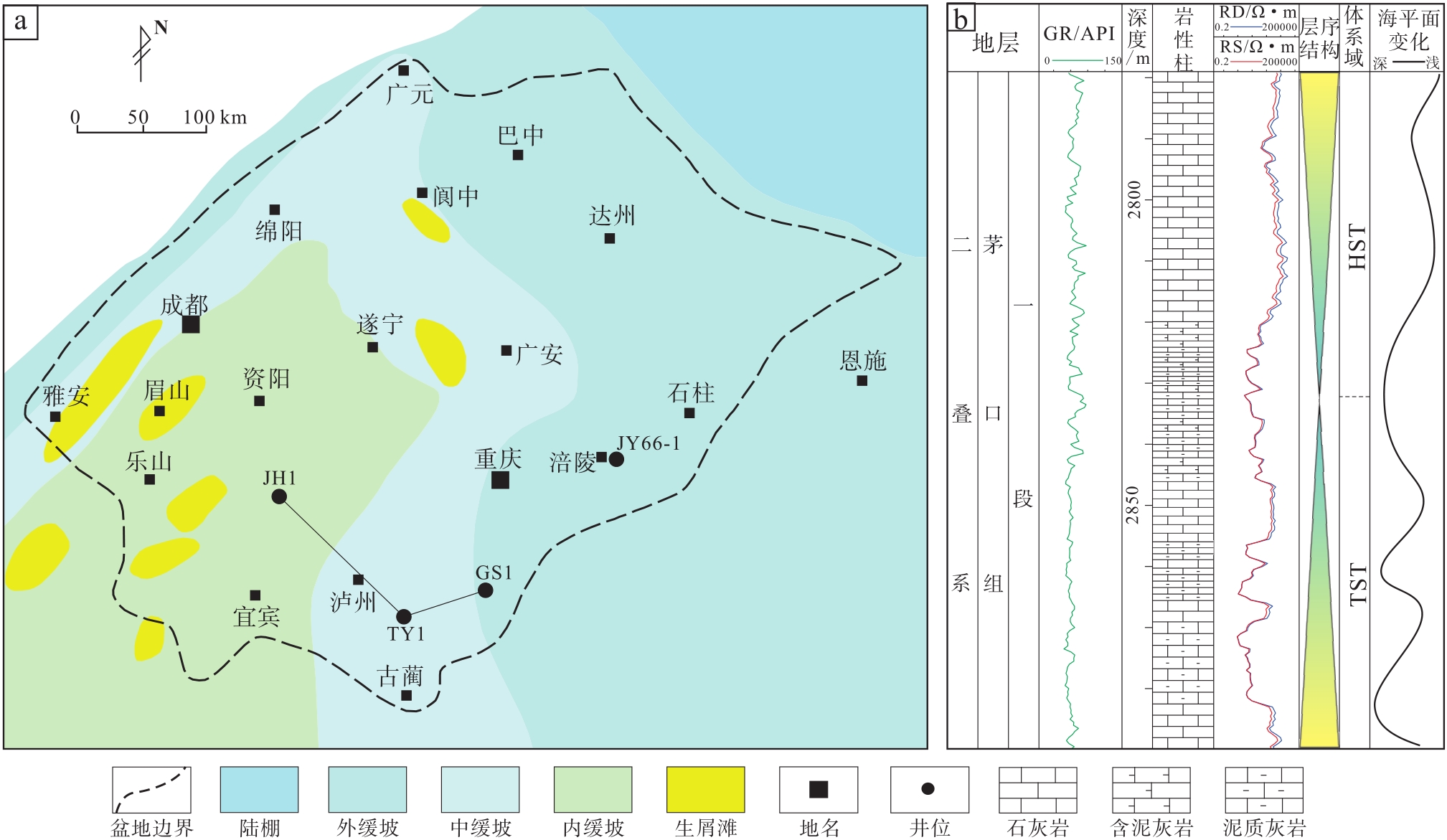

Fig.1 Sedimentary facies(a,modified from Li et al., 2024)and comprehensive column (b,modified from Meng et al., 2024) of the first member of Maokou Formation of Well TY1 in Sichuan Basin

Fig.2 Stratigraphic correlation of the first member of Maokou Formation among Wells JH1-TY1-GS1,Sichuan Basin

Fig.3 Relative contribution of different types of pores to the porosity in the first member of Maokou Formation,southern Sichuan Basin

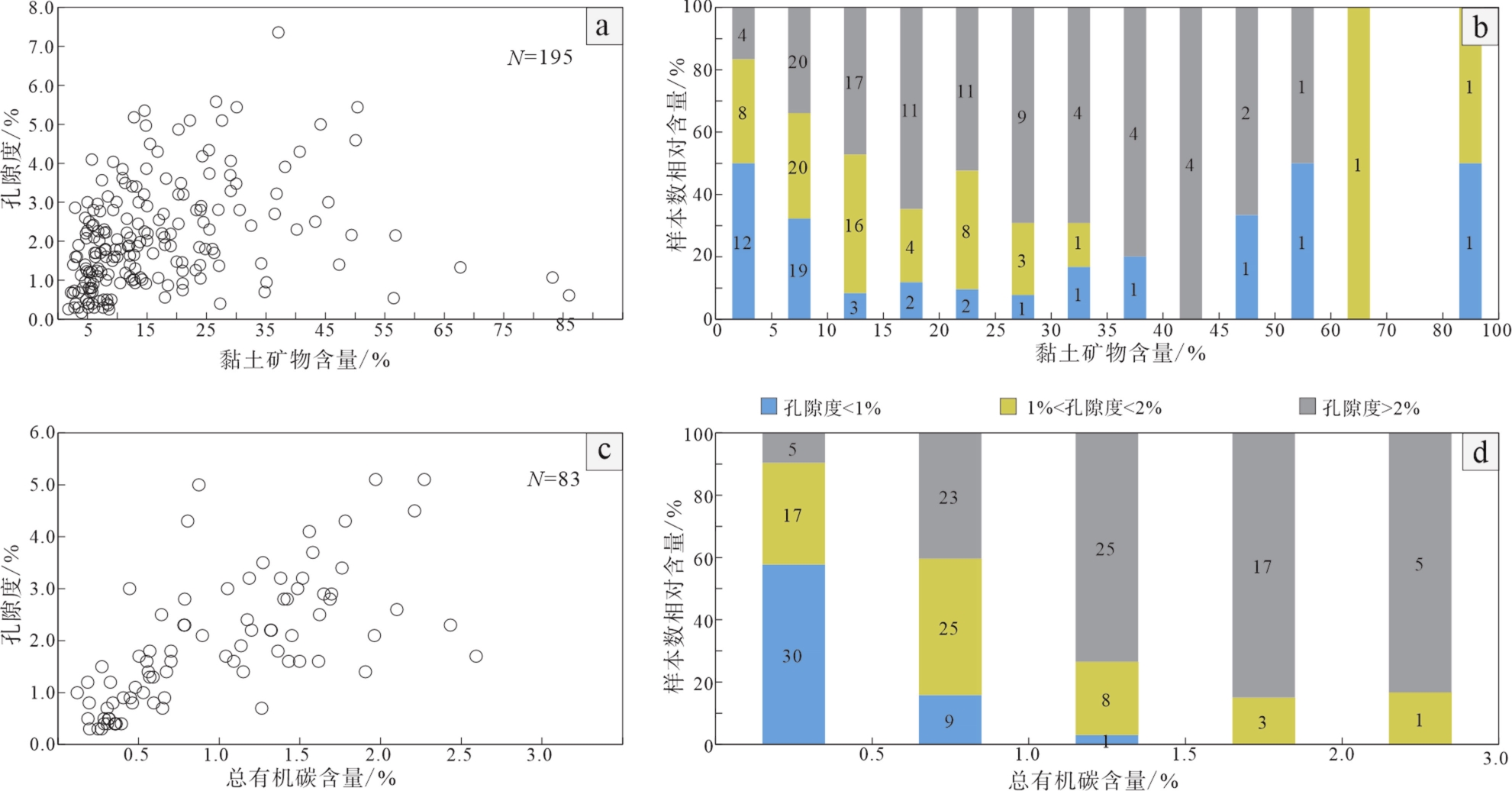

Fig.4 Relationship chart among clay mineral content,total organic carbon content,and porosity,as well as relative percentage in the first member of Maokou Formation,southern Sichuan Basin

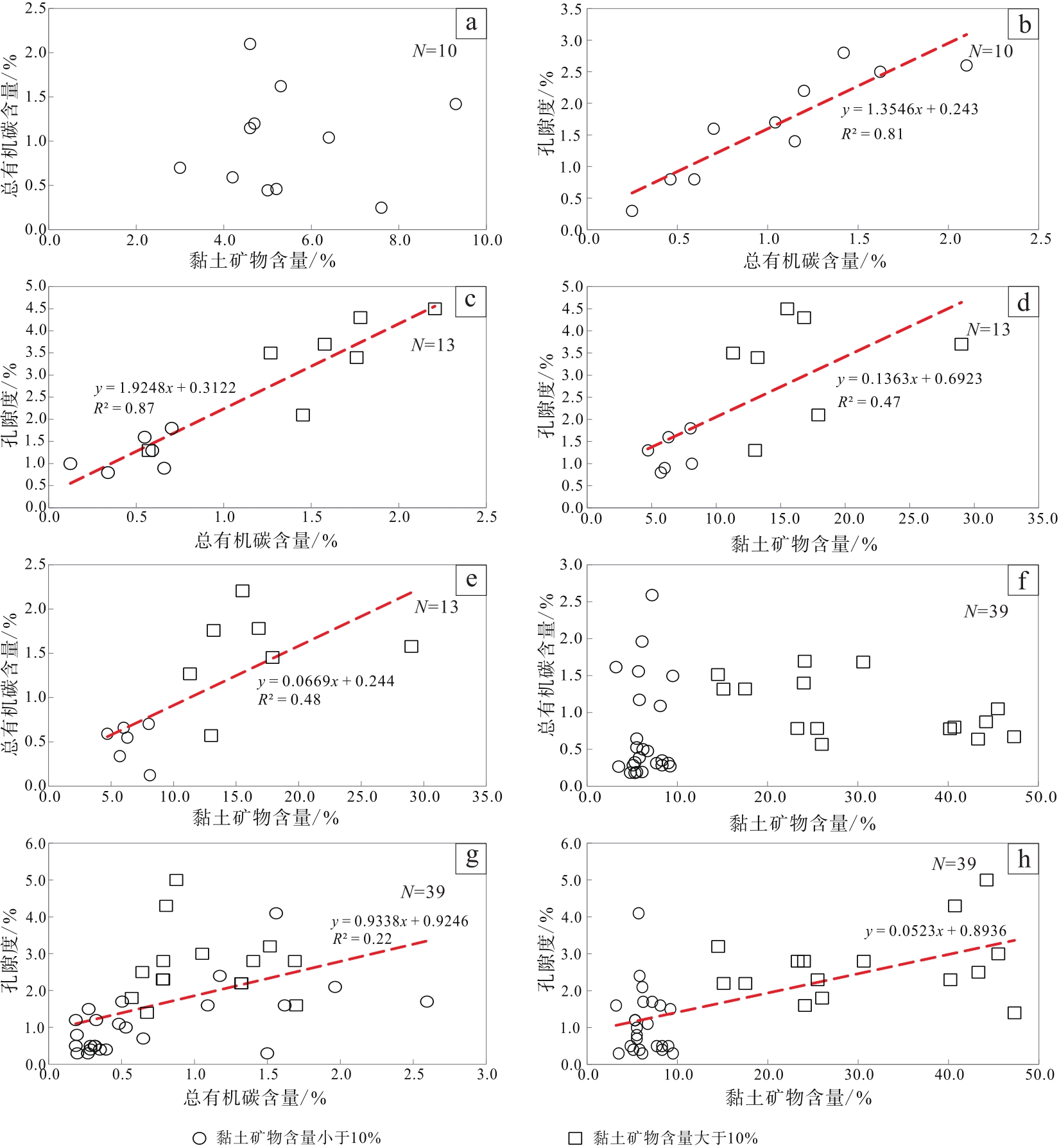

Fig.5 Correlation among porosity,total organic carbon content,and clay content in the first member of Maokou Formation,southern Sichuan Basin

Fig.6 Differences in pore development characteristics under argon ion electron microscopy of samples in the first member of Maokou Formation in Well GS1,southern Sichuan Basin

Fig.7 Differences in pore development characteristics under argon ion electron microscopy of samples in the first member of Maokou Formation in Well JH1,southern Sichuan Basin

Fig.8 Differences in pore development characteristics under argon ion electron microscopy of samples in the first member of Maokou Formation in Well TY1,southern Sichuan Basin

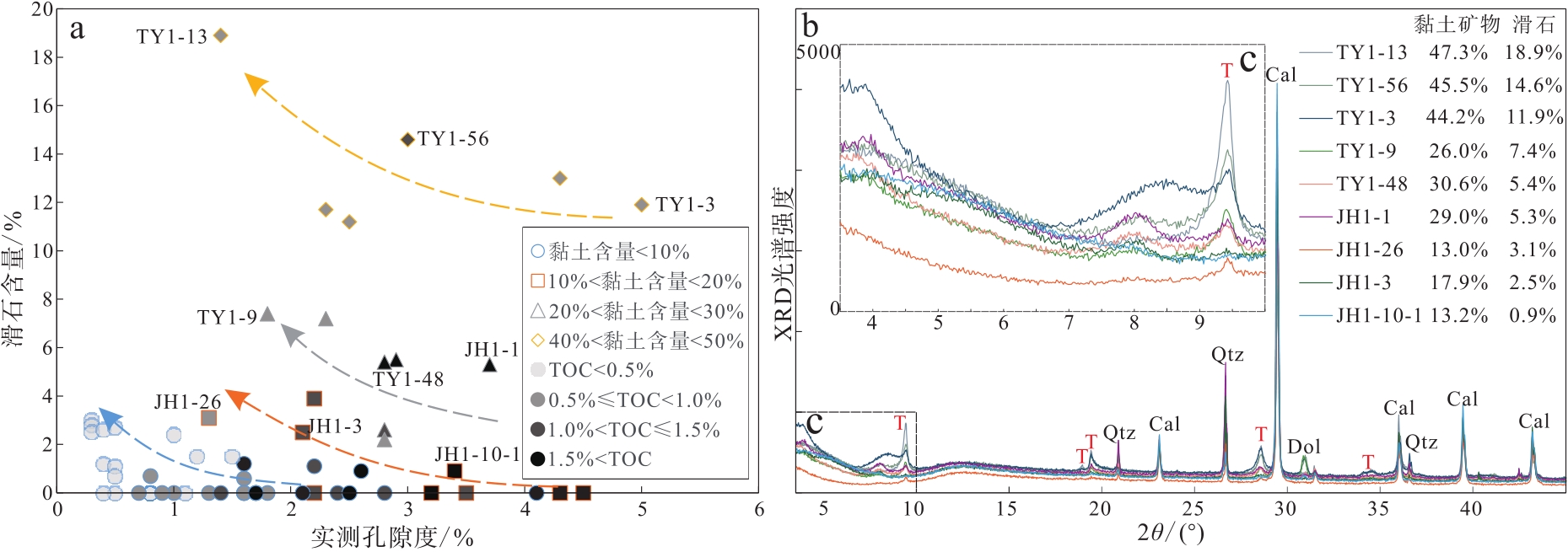

Fig.9 Relationship between content of talc and porosity of samples in the first member of Maokou Formation,southern Sichuan Basin

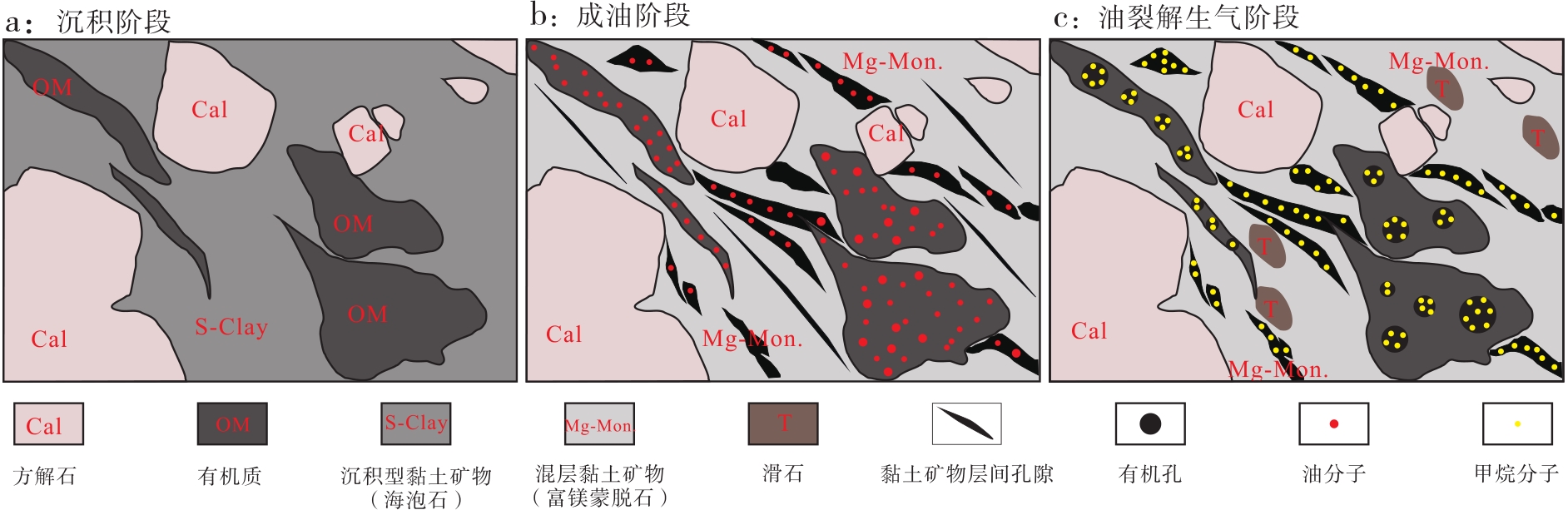

Fig.10 Micropore evolution model of the first member of Maokou Formation,southern Sichuan Basin

References 34

[1]	郭彤楼. 2021. 四川盆地碳酸盐岩源岩气地质特征与勘探前景. 西南石油大学学报(自然科学版), 43(1): 1-16.
	[Guo T L. 2021. Geological characteristics and exploration prospect of carbonate source rock gas in Sichuan Basin. Journal of Southwest Petroleum University(Science & Technology Edition), 43(1): 1-16]
[2]	韩月卿, 李双建, 韩文彪, 赵红琴, 刘光祥, 郝运轻. 2022. 川东南地区中二叠统茅口组灰泥灰岩储层孔隙特征. 石油实验地质, 44(4): 666-676.
	[Han Y Q, Li S J, Han W B, Zhao H Q, Liu G X, Hao Y Q. 2022. Pore characteristics of marl reservoir in Maokou Formation of Middle Permian,southeastern Sichuan Basin. Petroleum Geology & Experiment, 44(4): 666-676]
[3]	胡明毅, 胡忠贵, 魏国齐, 杨威, 刘满仓. 2012. 四川盆地茅口组层序岩相古地理特征及储集层预测. 石油勘探与开发, 39(1): 45-55.
	[Hu M Y, Hu Z G, Wei G Q, Yang W, Liu M C. 2012. Sequence lithofacies paleogeography and reservoir prediction of the Maokou Formation in Sichuan Basin. Petroleum Exploration and Development, 39(1): 45-55]
[4]	胡东风, 王良军, 张汉荣, 段金宝, 夏文谦, 刘珠江, 魏全超, 王昆, 潘磊. 2020. 碳酸盐岩烃源岩气藏的发现及其油气地质意义: 以四川盆地涪陵地区中二叠统茅口组一段气藏为例. 天然气工业, 40(7): 23-33.
	[Hu D F, Wang L J, Zhang H R, Duan J B, Xia W Q, Liu Z J, Wei Q C, Wang K, Pan L. 2020. Discovery of carbonate source rock gas reservoir and its petroleum geological implications: a case study of the gas reservoir in the first Member of Middle Permian Maokou Formation in the Fuling area,Sichuan Basin. Natural Gas Industry, 40(7): 23-33]
[5]	黄涵宇, 何登发, 李英强, 王贝. 2017. 四川盆地及邻区二叠纪梁山—栖霞组沉积盆地原型及其演化. 岩石学报, 33(4): 1317-1337.
	[Huang H Y, He D F, Li Y Q, Wang B. 2017. The prototype and its evolution of the Sichuan sedimentary basin and adjacent areas during Liangshan and Qixia stages in Permian. Acta Petrologica Sinica, 33(4): 1317-1337]
[6]	江青春, 胡素云, 汪泽成, 池英柳, 杨雨, 鲁卫华, 王海真, 李秋芬. 2012. 四川盆地茅口组风化壳岩溶古地貌及勘探选区. 石油学报, 33(6): 949-960.
	[Jiang Q C, Hu S Y, Wang Z C, Chi Y L, Yang Y, Lu W H, Wang H Z, Li Q F. 2012. Paleokarst landform of the weathering crust of Middle Permian Maokou Formation in Sichuan Basin and selection of exploration regions. Acta Petrolei Sinica, 33(6): 949-960]
[7]	匡明志, 张小兵, 袁海锋, 陈聪, 张玺华, 彭瀚霖, 徐婷, 肖钦仁, 李天军, 山述娇. 2024. 川中地区茅口组碳酸盐岩层序地层及沉积相特征. 古地理学报, 26(5): 1201-1220.
	[Kuang M Z, Zhang X B, Yuan H F, Chen C, Zhang X H, Peng H L, Xu T, Xiao Q R, Li T J, Shan S J. 2024. Sequence stratigraphy and sedimentary facies characteristics of the Maokou Formation carbonate rocks in central Sichuan Basin. Journal of Palaeogeography(Chinese Edition), 26(5): 1201-1220]
[8]	李大军, 陈辉, 陈洪德, 梁虹, 彭才, 夏铭, 段宏臻. 2016. 四川盆地中二叠统茅口组储层形成与古构造演化关系. 石油与天然气地质, 37(5): 756-763.
	[Li D J, Chen H, Chen H D, Liang H, Peng C, Xia M, Duan H Z. 2016. Relationship between reservoir development in the Middle Permian Maokou Formation and paleostructure evolution in the Sichuan Basin. Oil & Gas Geology, 37(5): 756-763]
[9]	李蓉, 苏成鹏, 石国山, 贾霍甫, 李素华, 余洋. 2021. 川南地区二叠系茅口组一段瘤状灰岩储层成因. 天然气地球科学, 32(6): 806-815.
	[Li R, Su C P, Shi G S, Jia H F, Li S H, Yu Y. 2021. The genesis of nodular limestone reservoirs of the first period of Maokou Formation of Permian in southern Sichuan Basin. Natural Gas Geoscience, 32(6): 806-815]
[10]	李蓉, 宋晓波, 苏成鹏, 李素华, 赵黔荣, 朱兰, 林辉. 2024. 川南威远地区二叠系茅口组一段泥灰岩储层特征及其发育主控因素. 石油实验地质, 46(5): 1028-1038.
	[Li R, Song X B, Su C P, Li S H, Zhao Q R, Zhu L, Lin H. 2024. Characteristics and main controlling factors of the marlstone reservoirs of the first member of Permian Maokou Formation in Weiyuan area,southern Sichuan Basin. Petroleum Geology & Experiment, 46(5): 1028-1038]
[11]	马永生, 蔡勋育, 赵培荣, 罗毅, 张学丰. 2010. 四川盆地大中型天然气田分布特征与勘探方向. 石油学报, 31(3): 347-354.
	[Ma Y S, Cai X Y, Zhao P R, Luo Y, Zhang X F. 2010. Distribution and further exploration of the large-medium sized gas fields in Sichuan Basin. Acta Petrolei Sinica, 31(3): 347-354]
[12]	孟宪武, 尤东华, 李蓉, 宋晓波, 张力钰, 朱兰. 2024. 四川盆地茅口组一段缝洞充填物特征及成因: 以A1井为例. 石油实验地质, 46(3): 483-490.
	[Meng X W, You D H, Li R, Song X B, Zhang L Y, Zhu L. 2024. Characteristics and genesis of fillings in fracture-cavity space in first member of Permian Maokou Formation,Sichuan Basin: a case study of well A1. Petroleum Geology & Experiment, 46(3): 483-490]
[13]	聂海宽, 张光荣, 李沛, 丁江辉, 党伟, 孙川翔, 张培先, 王进, 杨超, 李鹏, 王鹏威, 苏海琨. 2022. 页岩有机孔研究现状和展望. 石油学报, 43(12): 1770-1787.
	[Nie H K, Zhang G R, Li P, Ding J H, Dang W, Sun C X, Zhang P X, Wang J, Yang C, Li P, Wang P W, Su H K. 2022. Research status and prospect on organic matter pores in shale. Acta Petrolei Sinica, 43(12): 1770-1787]
[14]	宋金民, 刘树根, 金鑫, 汪华, 范建平, 江青春, 田小彬, 叶玥豪, 李亚, 李智武, 杨迪, 王佳蕊, 罗平. 2022. 四川盆地中二叠统含海泡石层系源储组合新模式及其油气勘探新领域. 成都理工大学学报(自然科学版), 49(2): 129-149.
	[Song J M, Liu S G, Jin X, Wang H, Fan J P, Jiang Q C, Tian X B, Ye Y H, Li Y, Li Z W, Yang D, Wang J R, Luo P. 2022. A new model of source-reservoir association and new fields of oil and gas exploration in the Middle Permian sepiolite bearing strata,Sichuan Basin,China. Journal of Chengdu University of Technology(Science & Technology Edition), 49(2): 129-149]
[15]	苏成鹏, 谭秀成, 王小芳, 李飞, 芦飞凡, 李明隆, 胡笙. 2020. 四川盆地东部中二叠统茅口组眼球状石灰岩储层特征及成因. 海相油气地质, 25(1): 55-62.
	[Su C P, Tan X C, Wang X F, Li F, Lu F F, Li M L, Hu S. 2020. Characteristics of eyeball-shaped limestone reservoir and its genesis of the Middle Permian Maokou Formation in East Sichuan Basin. Marine Origin Petroleum Geology, 25(1): 55-62]
[16]	苏成鹏, 李飞, 谭秀成, 王小芳, 龚峤林, 李明隆, 芦飞凡, 唐浩, 邓嘉婷, 李红. 2021a. 古代碳酸盐岩台地自生泥质组分成因及意义: 以上寺剖面中二叠统茅口组为例. 沉积学报, 39(3): 550-570.
	[Su C P, Li F, Tan X C, Wang X F, Gong Q L, Li M L, Lu F F, Tang H, Deng J T, Li H. 2021a. Origin and significance of authigenic argillaceous components on the ancient carbonate platform: a case study from the Maokou Formation of the Middle Permian at the Shangsi section,Guangyuan. Acta Sedimentologica Sinica, 39(3): 550-570]
[17]	苏成鹏, 李蓉, 石国山, 贾霍甫, 宋晓波. 2021b. 四川盆地及周缘中二叠统茅口组一段储集层特征及对油气勘探的启示. 石油勘探与开发, 48(6): 1150-1161.
	[Su C P, Li R, Shi G S, Jia H F, Song X B. 2021b. Reservoir characteristics of the first member of Middle Permian Maokou Formation in Sichuan Basin and its Periphery and inspirations to petroleum exploration,SW China. Petroleum Exploration and Development, 48(6): 1150-1161]
[18]	王道富, 王玉满, 董大忠, 王世谦, 黄金亮, 黄勇斌, 王淑芳, 李新景. 2013. 川南下寒武统筇竹寺组页岩储集空间定量表征. 天然气工业, 33(7): 1-10.
	[Wang D F, Wang Y M, Dong D Z, Wang S Q, Huang J L, Huang Y B, Wang S F, Li X J. 2013. Quantitative characterization of reservoir space in the Lower Cambrian Qiongzhusi shale,southern Sichuan Basin. Natural Gas Industry, 33(7): 1-10]
[19]	王佳蕊, 宋金民, 刘树根, 范建平, 黄士鹏, 李立基, 金鑫, 冯宇翔, 王俊柯, 王杉杉. 2022. 川东地区茅口组一段微孔特征及其主控因素. 非常规油气, 9(3): 32-41.
	[Wang J R, Song J M, Liu S G, Fan J P, Huang S P, Li L J, Jin X, Feng Y X, Wang J K, Wang S S. 2022. Micropore characteristics and main controlling factors of the Mao 1 Member of Maokou Formation in eastern Sichuan. Unconventional Oil & Gas, 9(3): 32-41]
[20]	王玉满, 董大忠, 杨桦, 何伶, 王世谦, 黄金亮, 蒲泊伶, 王淑芳. 2014. 川南下志留统龙马溪组页岩储集空间定量表征. 中国科学(地球科学), 44(6): 1348-1356.
	[Wang Y M, Dong D Z, Yang Y, He L, Wang S Q, Huang J L, Pu P L, Wang S F. 2014. Quantitative characterization of reservoir space in the Lower Silurian Longmaxi Shale,southern Sichuan Basin,China. Scientia Sinica(Terrae), 44(6): 1348-1356]
[21]	夏文谦, 张汉荣, 刘瑾, 汪雷. 2021. 川东南地区茅口组第一段灰泥灰岩储层储集空间构成定量分析. 成都理工大学学报(自然科学版), 48(4): 435-444.
	[Xia W Q, Zhang H R, Liu J, Wang L. 2021. Quantitative analysis of the space composition of marlite reservoir in the first member of Maokou Formation in southeastern Sichuan Basin,China. Journal of Chengdu University of Technology(Science & Technology Edition), 48(4): 435-444]
[22]	夏文谦, 刘瑾, 俞凌杰, 张汉荣, 汪建辉, 魏富彬, 章思遥. 2023. 川东南涪陵地区二叠系茅口组一段泥质灰岩储层特征及主控因素. 矿物岩石, 43(4): 100-108.
	[Xia W Q, Liu J, Yu L J, Zhang H R, Wang J H, Wei F B, Zhang S Y. 2023. Characteristics and main controlling factors of argillaceous limestone reservoir in the first Member of Permian Maokou Formation in Fuling area,southeast Sichuan Basin. Mineralogy and Petrology, 43(4): 100-108]
[23]	张运波, 王根厚, 余正伟, 赵宗举, 王明健, 孙衍鹏. 2013. 四川盆地中二叠统茅口组米兰科维奇旋回及高频层序. 古地理学报, 15(6): 777-786.
	[Zhang Y B, Wang G H, Yu Z W, Zhao Z J, Wang M J, Sun Y P. 2013. Milankovitch cycles and high-frequency sequences of the Middle Permian Maokou Formation in Sichuan Basin. Journal of Palaeogeography(Chinese Edition), 15(6): 777-786]
[24]	周进高, 姚根顺, 杨光, 谷明峰, 姚倩颖, 江青春, 杨柳, 杨雨然. 2016. 四川盆地栖霞组—茅口组岩相古地理与天然气有利勘探区带. 天然气工业, 36(4): 8-15.
	[Zhou J G, Yao G S, Yang G, Gu M F, Yao Q Y, Jiang Q C, Yang L, Yang Y R. 2016. Lithofacies palaeogeography and favorable gas exploration zones of Qixia and Maokou Fms in the Sichuan Basin. Natural Gas Industry, 36(4): 8-15]
[25]	张培先, 何希鹏, 高全芳, 高玉巧, 孙斌, 蔡潇, 何贵松, 张志萍, 刘娜娜. 2021. 四川盆地东南缘二叠系茅口组一段页岩气藏地质特征及富集模式. 石油与天然气地质, 42(1): 146-157.
	[Zhang P X, He X P, Gao Q F, Gao Y Q, Sun B, Cai X, He G S, Zhang Z P, Liu N N. 2021. Geological characteristics and enrichment pattern of Permian Mao 1 Member shale gas reservoirs at the southeastern margin of Sichuan Basin. Oil & Gas Geology, 42(1): 146-157]
[26]	赵培荣. 2021. 焦石坝地区茅一段储层特征及天然气勘探潜力. 油气藏评价与开发, 11(5): 772-781.
	[Zhao P R. 2021. Reservoir characteristics and gas exploration potential of Permian Mao-1member of Maokou Formation in Jiaoshiba Area. Petroleum Reservoir Evaluation and Development, 11(5): 772-781]
[27]	Chen F Y, Xue W Q, Yan J X, Wignall P B, Meng Q, Luo J X, Feng Q L. 2018. Alatoconchids: giant Permian bivalves from South China. Earth-Science Reviews,179: 147-167.
[28]	Chen J, Xiao X M. 2014. Evolution of nanoporosity in organic-rich shales during thermal maturation. Fuel,129: 173-181.
[29]	Cai Z X, Li J, Chen H R, Cong F Y, Wu N, Wang L J, Wei Q C, Luo Y P. 2019. Genesis of Mg-phyllosilicate occurrences in the Middle Permian marine successions of South China. Applied Clay Science,181: 105242.
[30]	Gao P, He Z L, Lash G G, Li S J, Xiao X M, Han Y Q, Zhang R Q. 2020. Mixed seawater and hydrothermal sources of nodular chert in Middle Permian limestone on the eastern Paleo-Tethys margin(South China). Palaeogeography,Palaeoclimatology,Palaeoecology,551: 109740.
[31]	Haq B U, Schutter S R. 2008. A chronology of Paleozoic sea-level changes. Science, 322(5898): 64-68.
[32]	Li J, Cai Z X, Chen H R, Cong F Y, Wang L J, Wei Q C, Luo Y P. 2018. Influence of differential diagenesis on primary depositional signals in limestone-marl alternations: an example from Middle Permian marine successions,South China. Palaeogeography,Palaeoclimatology,Palaeoecology,495: 139-151.
[33]	Meng Q, Xue W Q, Chen F Y, Yan J X, Cai J H, Sun Y D, Wignall P B, Liu K, Liu Z C, Chen D. 2022. Stratigraphy of the Guadalupian(Permian)siliceous deposits from central Guizhou of South China: regional correlations with implications for carbonate productivity during the Middle Permian biocrisis. Earth-Science Reviews,228: 104011.
[34]	Wang Z H, Ma Z L, Zheng L J, Wang J Y, Wen Z G, Si C Y. 2023. Dynamic evolution characteristics of the “source-reservoir”integration of gray marl and its geological significance to unconventional gas: insights from pyrolysis experiments. Petroleum Science, 20(2): 705-720.
