Geochemical characteristics of clastic rocks from the Xiali Formation in North Qiangtang Depression and their implications for weathering,provenance and tectonic setting

doi:10.7605/gdlxb.2025.077

Journal of Palaeogeography（Chinese Edition） ›› 2026, Vol. 28 ›› Issue (1): 245-263. doi: 10.7605/gdlxb.2025.077

• LITHOFACIES PALAEOGEOGRAPHY AND SEDIMENTOLOGY • Previous Articles Next Articles

Geochemical characteristics of clastic rocks from the Xiali Formation in North Qiangtang Depression and their implications for weathering,provenance and tectonic setting

QI Jun¹^,²(), WANG Zhongwei¹^,²(), WANG Jian¹^,², SUI Boyu¹^,², LI Lei¹^,²

1 School of Geoscience and Technology,Southwest Petroleum University,Chengdu 610500,China
2 Qiangtang Institute of Sedimentary Basin,Southwest Petroleum University,Chengdu 610500,China

Received:2024-12-20 Revised:2025-03-10 Online:2026-02-01 Published:2026-02-09
Contact: WANG Zhongwei,born in 1990,is an associate professor in Southwest Petroleum University. He is engaged in researches on the evolution of the Mesozoic Qiangtang Basin and the evaluation of oil and gas resources. E-mail: wzwcdg@sina.com.
About author:
QI Jun,born in 2001,masteral degree candidate,is mainly engaged in research on sedimentology. E-mail: 502205919@qq.com.
Supported by:
National Natural Science Foundation of China(42241202); National Natural Science Foundation of China(42372129); Natural Science Foundation of Sichuan Province(2024NSFSC0833)

北羌塘坳陷夏里组碎屑岩地球化学特征及其对风化、物源与构造背景的启示^*

戚俊¹^,²(), 王忠伟¹^,²(), 王剑¹^,², 隋博雨¹^,², 李磊¹^,²

1 西南石油大学地球科学与技术学院,四川成都 610500
2 西南石油大学羌塘盆地研究院,四川成都 610500

通讯作者: 王忠伟,男,1990年生,西南石油大学副教授,主要从事中生代羌塘盆地演化与油气资源评价研究。E-mail: wzwcdg@sina.com。
作者简介:
戚俊,男,2001年生,西南石油大学硕士研究生,主要从事沉积学研究工作。E-mail: 502205919@qq.com。
基金资助:
*国家自然科学基金项目(42241202); 国家自然科学基金项目(42372129); 四川省自然科学基金项目(2024NSFSC0833)

Abstract

Abstract:

A large-scale marine regression occurred during the depositional period of the Middle Jurassic Xiali Formation in the North Qiangtang Depression,accompanied by the widespread deposition of gypsum-bearing clastic sediments. Based on integrated petrological characteristics and elemental geochemical analyses of clastic rocks from the Xiali Formation in the Shenglihexi section and Well QK-1,we systematically analyzed the intensity of chemical weathering,provenance characteristics,and tectonic setting of these sediments,which is critical for understanding the evolutionary history and evaporite response of the Jurassic basin system. The results indicate that the Chemical Index of Alteration(CIA)values of these clastic rocks are significantly influenced by grain size and sediment sorting,but minimally affected by sedimentary recycling;thus,the CIA values of mudstone samples reflect the intensity of chemical weathering in the source region. Mudstones from the Xiali Formation in Well QK-1 exhibit considerable variation in CIA values(60-77),with negligible influence from potassium metasomatism,indicating that the source area underwent generally moderate to weak chemical weathering. In contrast,mudstones from the Shenglihexi section show significant effects of potassium metasomatism;after correction for this influence(CIAcorr),their values range from 80 to 85,suggesting intense chemical weathering in the corresponding source region. Discriminant diagrams based on La/Th vs. Hf,Co/Th vs. La/Sc,La/Yb vs. 􀰐REE,and A-CN-K plots,along with pronounced negative Eu anomalies,collectively indicate a predominantly felsic rock provenance for these clastic deposits. Clastic sediments from the western and central segments of the North Qiangtang Depression were deposited in a continental collision setting,whereas those from the eastern segment were formed in an arc-related tectonic environment. This interpretation aligns well with the established tectonic framework of the North Qiangtang Depression during the Middle Jurassic. During this period,the central and western regions functioned as a weakly magmatic intracontinental foreland basin,while the eastern region likely developed as a back-arc foreland basin,induced by southward subduction of the Bangonghu-Nujiang Tethys Ocean. Multiple transgressive-regressive cycles,combined with a relatively arid palaeoclimate and restricted paleogeographic conditions in the North Qiangtang Depression during the Early to Middle Jurassic,may have created favorable conditions for the formation of extensive gypsum-rich evaporites within the Xiali Formation.

Key words: chemical weathering, provenance, collision setting, Xiali Formation, Qiangtang Basin

摘要：

北羌塘坳陷中侏罗世夏里组沉积期发生了一次大规模海退,发育大量含膏碎屑岩。本研究以北羌塘坳陷胜利河西剖面和羌科1井夏里组碎屑岩岩石学及元素地球化学资料为基础,分析其物源区化学风化强度、沉积物源属性及大地构造背景,明确其对侏罗纪盆地演化及成盐响应的意义。结果表明: (1)研究区夏里组碎屑岩化学风化指数(CIA)受颗粒大小与分选性影响较大,且基本不受沉积旋回的影响,故泥页岩样品的CIA值能够较真实地反映物源区的化学风化强度。羌科1井夏里组泥页岩CIA值波动较大(60~77),基本不受钾交代作用影响,表明羌科1井物源区总体上经历了中等—弱的化学风化作用。胜利河西剖面夏里组泥页岩样品的CIA值受钾交代作用影响较大,经钾校正后的泥页岩样品CIA值(CIAcorr)为80~85,表明胜利河西剖面物源区经历了强烈的化学风化作用。(2)依据La/Th vs. Hf、Co/Th vs. La/Sc、La/Yb vs. 􀰐REE及A-CN-K等判别图解,结合显著的Eu负异常,推测夏里组物源主要来自长英质岩石。其中, 北羌塘坳陷西部胜利河和中部羌科1井地区夏里组碎屑岩主体形成于碰撞型构造背景,而东部沱沱河地区夏里组主体形成于岛弧构造背景,这一结论与北羌塘坳陷侏罗纪中期的构造体制一致, 即侏罗纪中期北羌塘中、西部为陆内弱挤压前陆盆地,而东部可能为班公湖—怒江新特提斯洋俯冲消减诱发的弧后前陆盆地。(3)侏罗纪早、中期北羌塘地区多期次海侵—海退、相对干旱的古气候条件及局限的古地理背景为夏里组膏盐岩形成奠定了有利条件。

关键词: 化学风化, 物源, 碰撞型背景, 夏里组, 羌塘盆地

CLC Number:

P594

QI Jun, WANG Zhongwei, WANG Jian, SUI Boyu, LI Lei. Geochemical characteristics of clastic rocks from the Xiali Formation in North Qiangtang Depression and their implications for weathering,provenance and tectonic setting[J]. Journal of Palaeogeography（Chinese Edition）, 2026, 28(1): 245-263.

戚俊, 王忠伟, 王剑, 隋博雨, 李磊. 北羌塘坳陷夏里组碎屑岩地球化学特征及其对风化、物源与构造背景的启示^*[J]. 古地理学报, 2026, 28(1): 245-263.

/ / Recommend / Download Citations

URL: http://www.gdlxb.cn/EN/10.7605/gdlxb.2025.077

http://www.gdlxb.cn/EN/Y2026/V28/I1/245

Figures/Tables 14

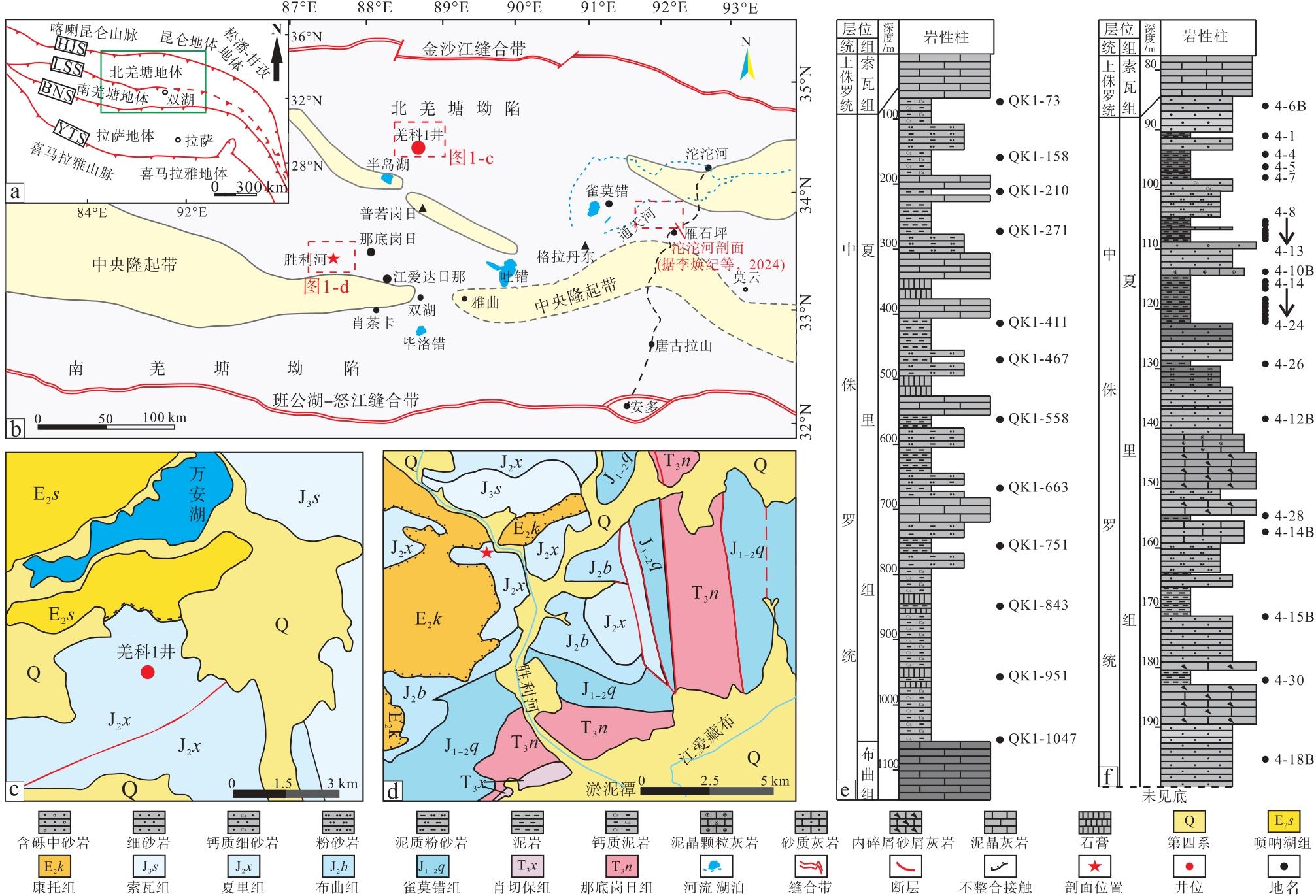

Fig.1 Brief geologic map,stratigraphic column and sampling positions of the Well QK-1 and Shenglihexi area in North Qiangtang Depression

Fig.2 Microscopical characteristics of the Xiali Formation rocks from Shenglihexi section,North Qiangtang Depression(Cross-polarized light)

Appendix 1 Major elements abundances(%)and associated ratios of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	岩性	SiO₂	(SiO₂)_adj	Al₂O₃	Fe₂ $O 3 T$	MgO	CaO	Na₂O	K₂O	MnO	TiO₂	P₂O₅	烧失量	SiO₂/Al₂O₃	Fe₂ $O 3 T$ /K₂O	CIA	CIA_corr	ICV	低硅型			高硅型
																				DF1	DF2	DF1	DF2
羌科1井	QK1-73	泥岩	57.0	62.2	18.2	5.07	2.05	4.19	0.45	3.79	0.04	0.73	0.12	8.36	3.13	1.34	77	77	0.83	3.60	0.35	—	—
	QK1-158	泥岩	53.4	61.2	12.7	4.57	1.96	10.4	0.94	2.51	0.08	0.59	0.12	12.8	4.21	1.82	69	69	1.15	1.95	0.34	—	—
	QK1-210	泥岩	55.0	60.6	16.4	6.14	2.44	5.60	0.95	3.23	0.06	0.69	0.13	9.33	3.34	1.90	71	71	1.08	2.17	0.63	—	—
	QK1-271	泥岩	59.3	63.7	17.3	6.04	2.28	2.60	1.20	3.54	0.05	0.72	0.11	6.85	3.43	1.71	69	69	1.07	—	—	0.70	-1.38
	QK1-411	泥岩	56.2	61.8	15.9	6.39	2.09	4.94	1.11	3.44	0.07	0.66	0.12	9.10	3.53	1.86	68	68	1.12	1.98	0.73	—	—
	QK1-467	泥岩	57.7	63.6	13.4	5.42	2.28	7.00	1.25	2.82	0.11	0.63	0.12	9.30	4.32	1.92	65	65	1.30	—	—	1.35	-1.28
	QK1-558	泥岩	58.6	65.4	11.7	4.00	1.93	8.82	1.41	2.40	0.07	0.57	0.12	10.4	5.02	1.67	62	62	1.33	—	—	0.96	-1.55
	QK1-663	泥岩	56.2	61.8	15.4	5.52	2.05	6.22	1.14	3.53	0.09	0.66	0.11	9.07	3.65	1.56	67	67	1.12	1.95	0.31	—	—
	QK1-751	泥岩	56.9	64.4	11.1	3.61	1.78	10.4	1.59	2.11	0.06	0.62	0.11	11.5	5.11	1.71	60	60	1.37	—	—	0.75	-1.54
	QK1-843	泥岩	57.5	62.8	15.4	5.82	2.16	5.45	1.36	3.03	0.09	0.69	0.13	8.20	3.74	1.92	66	66	1.17	1.38	0.37	—	—
	QK1-951	泥岩	55.7	60.6	17.1	6.75	2.68	3.96	1.32	3.31	0.09	0.75	0.14	8.14	3.25	2.04	68	68	1.18	1.43	0.21	—	—
	QK1-1047	泥岩	55.2	60.2	18.6	7.10	2.39	2.96	0.97	3.64	0.07	0.71	0.13	8.19	2.98	1.95	72	72	1.01	1.97	0.43	—	—
胜利河西剖面	4-6B	砂质灰岩	36.4	48.7	3.10	2.57	0.88	30.3	0.10	0.83	0.06	0.29	0.07	25.3	11.73	3.10	72	72	1.80	—	—	—	—
	4-1^*	泥岩	57.1	63.5	13.8	5.62	3.12	4.96	0.31	3.50	0.04	1.25	0.15	9.77	4.14	1.61	74	82	1.30	—	—	2.89	-3.88
	4-4^*	泥岩	57.1	62.7	15.9	6.82	3.20	2.26	0.34	4.08	0.04	1.23	0.15	8.55	3.59	1.67	74	82	1.24	4.77	0.20	—	—
	4-5^*	泥岩	57.0	62.8	15.3	6.72	3.10	2.94	0.29	4.03	0.04	1.13	0.15	8.78	3.73	1.67	74	83	1.24	5.04	0.20	—	—
	4-7^*	泥岩	58.9	64.6	14.5	6.45	3.02	2.86	0.44	3.63	0.03	1.19	0.15	8.50	4.06	1.78	73	80	1.29	—	—	1.92	-3.34
	4-8^*	泥岩	56.2	61.6	17.0	6.79	3.37	1.97	0.21	4.46	0.03	1.15	0.12	8.64	3.31	1.52	75	85	1.18	5.51	-0.24	—	—
	4-9^*	泥岩	56.8	62.8	16.0	6.56	3.10	2.22	0.25	4.19	0.03	1.15	0.13	9.18	3.55	1.57	75	84	1.19	5.30	0.03	—	—
	4-10^*	泥岩	55.2	61.5	16.6	6.83	3.15	2.02	0.20	4.51	0.03	1.13	0.12	9.37	3.33	1.51	75	85	1.17	5.62	-0.22	—	—
	4-11^*	泥岩	51.3	58.3	14.5	6.27	3.32	7.32	0.26	3.80	0.05	1.10	0.14	11.6	3.54	1.65	74	83	1.30	5.08	-0.44	—	—
	4-13^*	泥岩	47.1	55.1	13.3	5.61	3.10	11.3	0.22	3.60	0.06	1.03	0.13	14.1	3.54	1.56	74	84	1.32	5.29	-0.65	—	—
	4-10B	砂岩	59.7	70.0	4.50	3.87	4.99	9.82	0.37	1.15	0.16	0.67	0.09	14.5	13.26	3.36	65	65	4.17	—	—	4.89	-2.22
	4-14^*	泥岩	56.2	61.7	15.7	7.07	3.38	2.85	0.25	4.15	0.04	1.29	0.15	8.60	3.58	1.70	75	84	1.28	5.31	-0.14	—	—
	4-16^*	泥岩	57.0	62.3	16.2	6.27	3.40	2.60	0.23	4.34	0.04	1.22	0.14	8.54	3.52	1.44	75	84	1.22	5.40	-0.46	—	—
	4-18^*	泥岩	57.0	62.2	15.7	6.75	3.46	2.91	0.33	4.04	0.04	1.30	0.16	8.26	3.63	1.67	74	83	1.29	4.86	-0.04	—	—
	4-20^*	泥岩	55.0	61.3	14.3	6.61	3.22	5.04	0.30	3.81	0.05	1.29	0.16	9.54	3.85	1.73	74	82	1.35	4.99	-0.11	—	—
	4-22^*	泥岩	54.8	60.8	15.2	6.67	3.33	4.49	0.22	4.06	0.05	1.20	0.14	9.30	3.61	1.64	75	84	1.28	5.45	-0.38	—	—
胜利河西剖面	4-24^*	泥岩	55.6	61.4	15.1	6.64	3.31	4.10	0.39	3.87	0.05	1.27	0.15	9.14	3.68	1.72	73	81	1.31	4.52	0.01	—	—
	4-26	泥岩	46.9	55.1	14.6	7.61	3.07	7.78	0.24	3.95	0.06	0.92	0.07	11.0	3.22	1.93	74	84	1.30	5.05	-0.58	—	—
	4-12B	砂岩	58.6	67.0	9.3	4.34	2.03	9.23	0.68	2.21	0.07	0.91	0.15	10.6	6.30	1.97	67	67	1.49	—	—	1.57	-3.06
	4-28	泥岩	39.2	47.9	11.9	5.66	3.29	17.6	0.29	2.85	0.10	0.80	0.12	17.6	3.30	1.99	75	82	1.45	4.11	-1.13	—	—
	4-14B	砂质灰岩	23.8	34.8	2.85	1.48	1.18	37.6	0.44	0.48	0.19	0.28	0.09	30.4	8.35	3.07	59	59	2.30	—	—	—	—
	4-15B	砂岩	70.2	74.7	8.72	3.93	1.83	4.77	1.20	1.78	0.06	1.33	0.17	5.65	8.05	2.21	60	60	1.70	—	—	0.34	-2.75
	4-30	泥岩	52.2	58.0	16.8	8.37	3.89	3.00	0.43	3.95	0.05	1.22	0.15	8.58	3.11	2.12	75	81	1.34	4.13	-0.01	—	—
	4-18B	砂岩	69.1	73.6	9.73	4.31	2.03	4.39	0.99	2.10	0.05	1.10	0.13	5.82	7.11	2.05	64	64	1.54	—	—	0.79	-2.68
	UCC	—	66.6	—	15.4	5.04	2.48	3.59	3.27	2.8	0.1	0.64	0.15	—	—	—	—	—	—	—	—	—	—

Appendix 1 Major elements abundances(%)and associated ratios of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	岩性	SiO₂	(SiO₂)_adj	Al₂O₃	Fe₂ $O 3 T$	MgO	CaO	Na₂O	K₂O	MnO	TiO₂	P₂O₅	烧失量	SiO₂/Al₂O₃	Fe₂ $O 3 T$ /K₂O	CIA	CIA_corr	ICV	低硅型			高硅型
																				DF1	DF2	DF1	DF2
羌科1井	QK1-73	泥岩	57.0	62.2	18.2	5.07	2.05	4.19	0.45	3.79	0.04	0.73	0.12	8.36	3.13	1.34	77	77	0.83	3.60	0.35	—	—
	QK1-158	泥岩	53.4	61.2	12.7	4.57	1.96	10.4	0.94	2.51	0.08	0.59	0.12	12.8	4.21	1.82	69	69	1.15	1.95	0.34	—	—
	QK1-210	泥岩	55.0	60.6	16.4	6.14	2.44	5.60	0.95	3.23	0.06	0.69	0.13	9.33	3.34	1.90	71	71	1.08	2.17	0.63	—	—
	QK1-271	泥岩	59.3	63.7	17.3	6.04	2.28	2.60	1.20	3.54	0.05	0.72	0.11	6.85	3.43	1.71	69	69	1.07	—	—	0.70	-1.38
	QK1-411	泥岩	56.2	61.8	15.9	6.39	2.09	4.94	1.11	3.44	0.07	0.66	0.12	9.10	3.53	1.86	68	68	1.12	1.98	0.73	—	—
	QK1-467	泥岩	57.7	63.6	13.4	5.42	2.28	7.00	1.25	2.82	0.11	0.63	0.12	9.30	4.32	1.92	65	65	1.30	—	—	1.35	-1.28
	QK1-558	泥岩	58.6	65.4	11.7	4.00	1.93	8.82	1.41	2.40	0.07	0.57	0.12	10.4	5.02	1.67	62	62	1.33	—	—	0.96	-1.55
	QK1-663	泥岩	56.2	61.8	15.4	5.52	2.05	6.22	1.14	3.53	0.09	0.66	0.11	9.07	3.65	1.56	67	67	1.12	1.95	0.31	—	—
	QK1-751	泥岩	56.9	64.4	11.1	3.61	1.78	10.4	1.59	2.11	0.06	0.62	0.11	11.5	5.11	1.71	60	60	1.37	—	—	0.75	-1.54
	QK1-843	泥岩	57.5	62.8	15.4	5.82	2.16	5.45	1.36	3.03	0.09	0.69	0.13	8.20	3.74	1.92	66	66	1.17	1.38	0.37	—	—
	QK1-951	泥岩	55.7	60.6	17.1	6.75	2.68	3.96	1.32	3.31	0.09	0.75	0.14	8.14	3.25	2.04	68	68	1.18	1.43	0.21	—	—
	QK1-1047	泥岩	55.2	60.2	18.6	7.10	2.39	2.96	0.97	3.64	0.07	0.71	0.13	8.19	2.98	1.95	72	72	1.01	1.97	0.43	—	—
胜利河西剖面	4-6B	砂质灰岩	36.4	48.7	3.10	2.57	0.88	30.3	0.10	0.83	0.06	0.29	0.07	25.3	11.73	3.10	72	72	1.80	—	—	—	—
	4-1^*	泥岩	57.1	63.5	13.8	5.62	3.12	4.96	0.31	3.50	0.04	1.25	0.15	9.77	4.14	1.61	74	82	1.30	—	—	2.89	-3.88
	4-4^*	泥岩	57.1	62.7	15.9	6.82	3.20	2.26	0.34	4.08	0.04	1.23	0.15	8.55	3.59	1.67	74	82	1.24	4.77	0.20	—	—
	4-5^*	泥岩	57.0	62.8	15.3	6.72	3.10	2.94	0.29	4.03	0.04	1.13	0.15	8.78	3.73	1.67	74	83	1.24	5.04	0.20	—	—
	4-7^*	泥岩	58.9	64.6	14.5	6.45	3.02	2.86	0.44	3.63	0.03	1.19	0.15	8.50	4.06	1.78	73	80	1.29	—	—	1.92	-3.34
	4-8^*	泥岩	56.2	61.6	17.0	6.79	3.37	1.97	0.21	4.46	0.03	1.15	0.12	8.64	3.31	1.52	75	85	1.18	5.51	-0.24	—	—
	4-9^*	泥岩	56.8	62.8	16.0	6.56	3.10	2.22	0.25	4.19	0.03	1.15	0.13	9.18	3.55	1.57	75	84	1.19	5.30	0.03	—	—
	4-10^*	泥岩	55.2	61.5	16.6	6.83	3.15	2.02	0.20	4.51	0.03	1.13	0.12	9.37	3.33	1.51	75	85	1.17	5.62	-0.22	—	—
	4-11^*	泥岩	51.3	58.3	14.5	6.27	3.32	7.32	0.26	3.80	0.05	1.10	0.14	11.6	3.54	1.65	74	83	1.30	5.08	-0.44	—	—
	4-13^*	泥岩	47.1	55.1	13.3	5.61	3.10	11.3	0.22	3.60	0.06	1.03	0.13	14.1	3.54	1.56	74	84	1.32	5.29	-0.65	—	—
	4-10B	砂岩	59.7	70.0	4.50	3.87	4.99	9.82	0.37	1.15	0.16	0.67	0.09	14.5	13.26	3.36	65	65	4.17	—	—	4.89	-2.22
	4-14^*	泥岩	56.2	61.7	15.7	7.07	3.38	2.85	0.25	4.15	0.04	1.29	0.15	8.60	3.58	1.70	75	84	1.28	5.31	-0.14	—	—
	4-16^*	泥岩	57.0	62.3	16.2	6.27	3.40	2.60	0.23	4.34	0.04	1.22	0.14	8.54	3.52	1.44	75	84	1.22	5.40	-0.46	—	—
	4-18^*	泥岩	57.0	62.2	15.7	6.75	3.46	2.91	0.33	4.04	0.04	1.30	0.16	8.26	3.63	1.67	74	83	1.29	4.86	-0.04	—	—
	4-20^*	泥岩	55.0	61.3	14.3	6.61	3.22	5.04	0.30	3.81	0.05	1.29	0.16	9.54	3.85	1.73	74	82	1.35	4.99	-0.11	—	—
	4-22^*	泥岩	54.8	60.8	15.2	6.67	3.33	4.49	0.22	4.06	0.05	1.20	0.14	9.30	3.61	1.64	75	84	1.28	5.45	-0.38	—	—
胜利河西剖面	4-24^*	泥岩	55.6	61.4	15.1	6.64	3.31	4.10	0.39	3.87	0.05	1.27	0.15	9.14	3.68	1.72	73	81	1.31	4.52	0.01	—	—
	4-26	泥岩	46.9	55.1	14.6	7.61	3.07	7.78	0.24	3.95	0.06	0.92	0.07	11.0	3.22	1.93	74	84	1.30	5.05	-0.58	—	—
	4-12B	砂岩	58.6	67.0	9.3	4.34	2.03	9.23	0.68	2.21	0.07	0.91	0.15	10.6	6.30	1.97	67	67	1.49	—	—	1.57	-3.06
	4-28	泥岩	39.2	47.9	11.9	5.66	3.29	17.6	0.29	2.85	0.10	0.80	0.12	17.6	3.30	1.99	75	82	1.45	4.11	-1.13	—	—
	4-14B	砂质灰岩	23.8	34.8	2.85	1.48	1.18	37.6	0.44	0.48	0.19	0.28	0.09	30.4	8.35	3.07	59	59	2.30	—	—	—	—
	4-15B	砂岩	70.2	74.7	8.72	3.93	1.83	4.77	1.20	1.78	0.06	1.33	0.17	5.65	8.05	2.21	60	60	1.70	—	—	0.34	-2.75
	4-30	泥岩	52.2	58.0	16.8	8.37	3.89	3.00	0.43	3.95	0.05	1.22	0.15	8.58	3.11	2.12	75	81	1.34	4.13	-0.01	—	—
	4-18B	砂岩	69.1	73.6	9.73	4.31	2.03	4.39	0.99	2.10	0.05	1.10	0.13	5.82	7.11	2.05	64	64	1.54	—	—	0.79	-2.68
	UCC	—	66.6	—	15.4	5.04	2.48	3.59	3.27	2.8	0.1	0.64	0.15	—	—	—	—	—	—	—	—	—	—

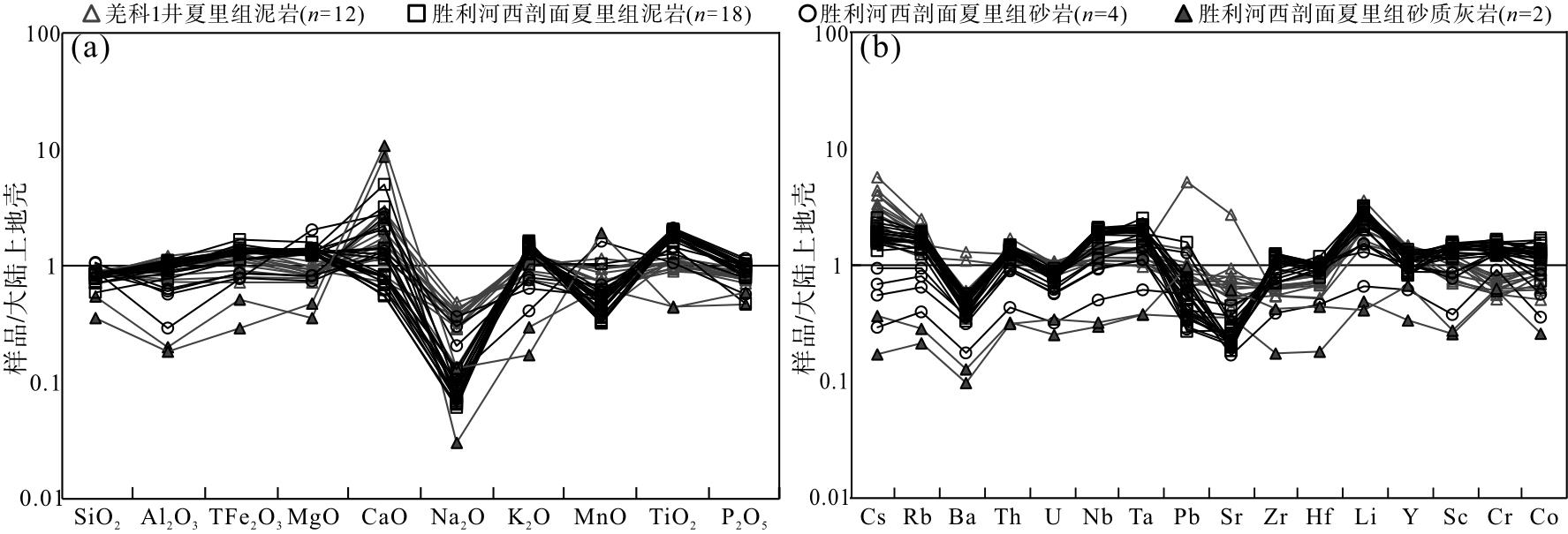

Fig.3 UCC-normalized major element(a)and trace element(b)spider diagrams of the Xiali Formation from Shenglihexi section and Well QK-1,North Qiangtang Depression

Fig.4 Chemical classification of the Xiali Formation clastic rocks from Shenglihexi section and Well QK-1, North Qiangtang Depression(modified from Herron,1988)

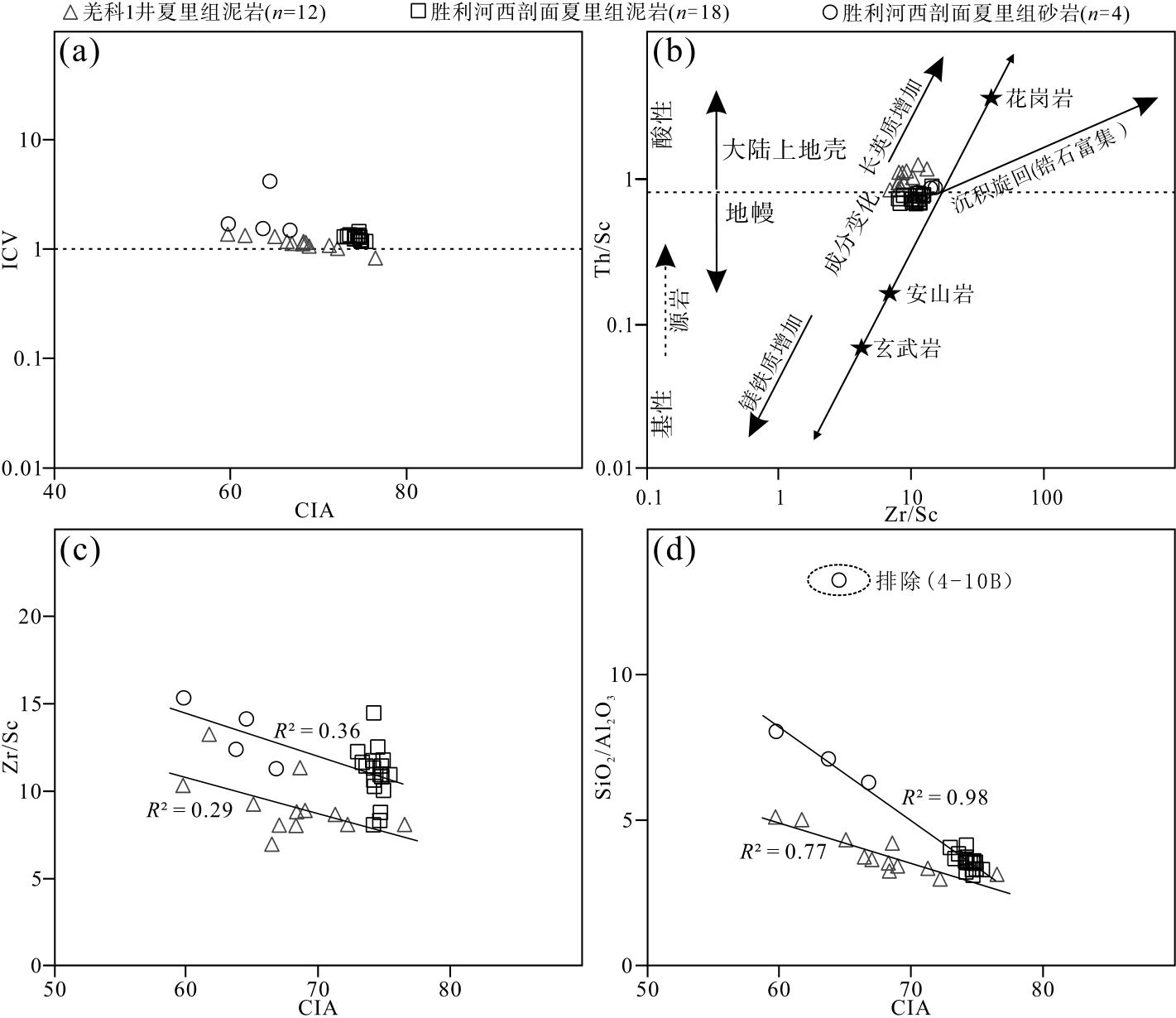

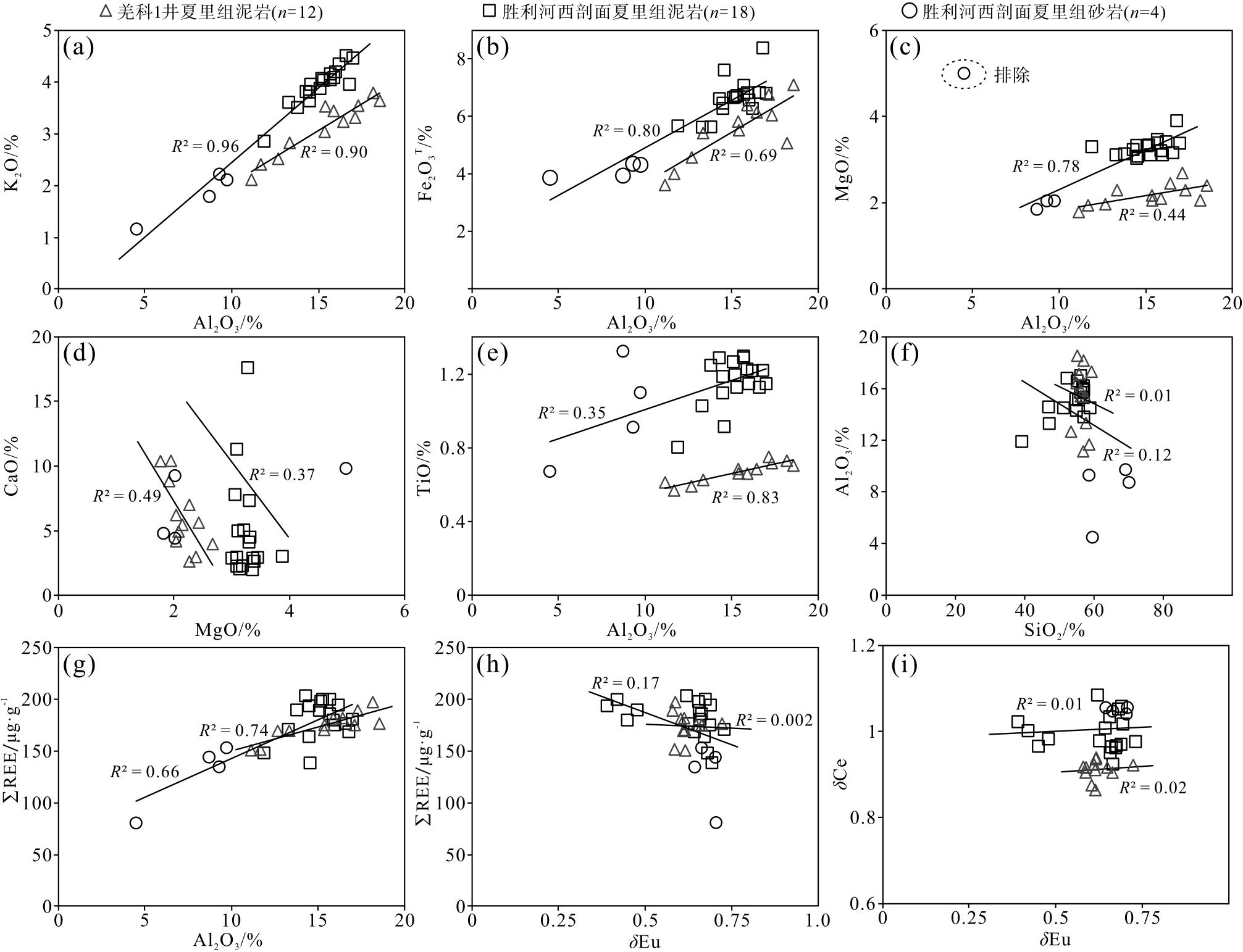

Fig.5 Correlation between various types of geochemical indicators of the Xiali Formation clastic rocks from Shenglihexi section and Well QK-1,North Qiangtang Depression

Appendix 2 Trace elements abundances(μg/g)and associated ratios of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	Cs	Rb	Ba	Th	U	Nb	Ta	Pb	Sr	Zr	Hf	Y	Sc	Cr	Co	Cu	Zr/Sc	Th/Sc	La/Th	La/Sc	Co/Th	Sr/Cu	Rb/Sr	Sr/Ba	Rb/K
羌科1井	QK1-73	27.8	209	218	17.7	2.77	18.8	1.41	22.9	163	129	3.79	30.0	16.0	55.9	14.8	37.4	8.06	1.11	2.44	2.70	0.84	4.36	1.28	0.75	0.0066
	QK1-158	15.4	132	319	13.4	2.45	15.4	1.14	17.7	211	121	3.73	27.3	10.7	51.2	11.9	27.1	11.3	1.25	2.70	3.38	0.89	7.79	0.63	0.66	0.0063
	QK1-210	19.5	157	221	15.2	2.73	16.6	1.25	14.3	252	119	3.58	29.9	13.8	58.0	14.5	29.0	8.62	1.10	2.55	2.80	0.95	8.69	0.62	1.14	0.0059
	QK1-271	19.5	172	247	14.8	2.85	17.3	1.23	11.0	259	140	4.30	30.9	15.8	47.0	14.1	29.4	8.86	0.94	2.70	2.53	0.95	8.81	0.66	1.05	0.0059
	QK1-411	16.4	165	345	14.1	2.79	16.1	1.25	12.4	232	120	3.88	30.9	15.0	76.0	15.6	29.9	8.00	0.94	2.84	2.67	1.11	7.76	0.71	0.67	0.0058
	QK1-467	13.2	126	813	13.0	2.90	15.5	1.21	87.8	863	106	3.56	28.9	11.5	63.1	16.5	36.4	9.22	1.13	2.91	3.29	1.27	23.7	0.15	1.06	0.0054
	QK1-558	11.0	114	372	11.4	2.33	13.9	1.04	12.9	198	129	3.87	24.4	9.77	51.7	8.77	61.3	13.2	1.17	2.89	3.37	0.77	3.23	0.58	0.53	0.0057
	QK1-663	15.2	163	339	14.2	2.76	15.1	1.15	13.6	170	122	3.97	28.0	15.2	62.9	14.1	29.6	8.03	0.93	2.64	2.47	0.99	5.74	0.96	0.50	0.0056
	QK1-751	7.9	97.8	686	10.4	2.16	13.0	0.96	10.6	299	105	2.74	25.5	10.2	54.9	10.6	22.9	10.3	1.02	3.00	3.06	1.02	13.1	0.33	0.44	0.0056
	QK1-843	13.3	147	309	12.8	2.43	14.0	1.02	14.5	163	106	2.78	28.8	15.3	65.8	16.0	34.1	6.93	0.84	2.82	2.36	1.25	4.78	0.90	0.53	0.0058
	QK1-951	14.6	153	378	15.0	2.88	13.2	0.97	11.5	220	137	4.34	26.6	15.6	70.0	15.6	27.4	8.78	0.96	2.52	2.42	1.04	8.03	0.70	0.58	0.0056
	QK1-1047	21.3	166	313	14.5	2.69	12.4	0.87	11.8	139	137	4.48	25.6	17.0	72.1	15.6	38.5	8.06	0.85	2.61	2.23	1.08	3.61	1.19	0.44	0.0055
胜利河西剖面	4-6B	1.80	23.9	80.5	3.38	0.68	3.59	0.34	6.13	114	33.9	0.96	7.038	3.60	55.6	4.47	4.19	9.40	0.94	3.03	2.84	1.32	27.1	0.21	1.14	0.0035
	4-1^*	6.51	119	254	14.0	2.40	21.7	1.75	5.00	68.9	228	5.05	26.7	15.8	111	20.1	25.8	14.4	0.89	2.98	2.64	1.44	2.67	1.73	0.27	0.0041
	4-4^*	7.88	130	302	14.0	2.10	23.1	1.75	12.8	59.0	241	5.43	26.6	20.6	115	25.5	48.1	11.7	0.68	2.84	1.93	1.82	1.23	2.20	0.20	0.0038
	4-5^*	8.73	127	349	14.2	2.18	22.5	1.82	11.2	66.3	203	4.99	27.3	18.0	112	29.5	21.7	11.3	0.79	3.00	2.37	2.08	3.06	1.92	0.19	0.0038
	4-7^*	8.28	128	315	14.3	2.13	24.9	1.85	5.87	76.8	231	5.23	23.9	18.9	123	22.7	65.5	12.2	0.76	2.84	2.15	1.59	1.17	1.67	0.24	0.0042
	4-8^*	11.2	164	356	14.8	2.41	25.1	1.99	9.75	63.3	241	5.45	18.8	22.1	126	21.7	30.9	10.9	0.67	2.87	1.92	1.47	2.05	2.59	0.18	0.0044
	4-9^*	9.04	146	335	14.3	2.30	22.7	1.76	12.4	59.7	222	5.16	18.0	18.9	124	21.0	19.5	11.7	0.76	2.95	2.23	1.47	3.06	2.45	0.18	0.0042
	4-10^*	10.6	156	356	15.2	2.20	23.6	1.66	9.29	64.7	210	5.29	17.6	21.0	137	19.7	20.6	10.0	0.72	2.74	1.98	1.30	3.14	2.41	0.18	0.0042
	4-11^*	7.98	134	268	12.8	1.96	21.8	1.61	4.62	88.5	206	4.51	22.3	16.5	119	18.0	41.6	12.5	0.78	2.73	2.12	1.41	2.13	1.51	0.33	0.0042
	4-13^*	7.64	116	239	12.0	2.14	18.3	1.51	6.96	117	179	4.13	23.0	17.5	115	21.7	31.8	10.2	0.69	3.18	2.18	1.81	3.68	0.99	0.49	0.0039
	4-10B	1.43	33.3	111	4.55	0.87	6.02	0.55	9.58	54.3	74.4	2.43	12.8	5.28	83.1	6.17	5.39	14.1	0.86	3.32	2.86	1.36	10.1	0.61	0.49	0.0035
	4-14^*	9.14	140	300	15.0	2.36	25.3	1.83	14.0	67.9	232	5.46	25.2	21.3	144	28.2	17.5	10.9	0.70	2.99	2.11	1.88	3.88	2.06	0.23	0.0041
	4-16^*	9.64	151	328	15.6	2.26	24.3	1.78	6.84	70.9	220	5.45	22.4	20.4	130	22.4	30.5	10.8	0.76	2.75	2.10	1.44	2.32	2.13	0.22	0.0042
	4-18^*	9.36	138	316	14.8	2.18	22.9	1.81	7.59	71.6	228	5.41	25.3	21.5	151	23.3	117	10.6	0.69	3.02	2.08	1.57	0.61	1.93	0.23	0.0041
	4-20^*	8.00	114	287	13.4	1.98	24.8	1.91	6.37	80.7	212	5.31	28.6	18.6	131	23.5	27.6	11.4	0.72	3.01	2.17	1.75	2.92	1.41	0.28	0.0036
胜利河西剖面	4-22^*	8.79	131	333	14.2	2.12	21.7	1.76	7.07	76.8	212	4.80	25.4	18.6	146	23.0	46.4	11.4	0.76	2.90	2.22	1.62	1.66	1.71	0.23	0.0039
	4-24^*	8.52	132	301	13.4	2.18	22.9	1.92	6.04	76.3	225	5.23	25.6	19.4	138	26.9	86.3	11.6	0.69	3.13	2.16	2.01	0.88	1.73	0.25	0.0041
	4-26	12.5	161	235	14.1	2.15	16.7	1.67	26.6	104	157	5.49	17.1	19.5	122	19.4	30.3	8.05	0.73	2.15	1.56	1.37	3.42	1.55	0.44	0.0049
	4-12B	4.59	78.5	225	9.77	1.67	13.7	1.32	21.7	97.6	137	4.71	18.4	12.1	112	15.9	47.0	11.2	0.80	2.72	2.19	1.62	2.08	0.80	0.43	0.0043
	4-28	7.47	104	208	11.0	1.80	13.8	1.29	8.85	143	135	4.97	19.8	16.3	119	12.6	12.8	8.28	0.67	2.65	1.79	1.15	11.2	0.73	0.69	0.0044
	4-14B	0.84	18.0	61.8	3.29	0.92	3.88	0.34	16.6	197	81.1	2.33	14.0	3.86	57.8	11.1	6.14	21.0	0.85	5.07	4.33	3.37	32.1	0.09	3.18	0.0045
	4-15B	2.70	54.0	196	9.36	1.55	11.2	1.01	4.79	65.8	165	5.71	21.3	10.8	116	9.76	4.40	15.3	0.87	2.91	2.53	1.04	15.0	0.82	0.34	0.0037
	4-30	10.2	140	322	15.7	2.53	20.8	2.26	12.1	71.4	178	6.29	21.6	20.4	152	20.2	56.7	8.74	0.77	2.40	1.84	1.29	1.26	1.97	0.22	0.0043
	4-18B	3.35	67.1	233	9.42	1.53	11.1	0.99	6.26	69.3	147	5.25	20.8	11.9	121	14.2	8.33	12.4	0.79	3.20	2.54	1.51	8.33	0.97	0.30	0.0038
	UCC	4.9	84	628	10.5	2.7	12	0.9	17	320	193	5.3	21	14	92	17.3	—	—	—	—	—	—	—	—	—	—

Appendix 2 Trace elements abundances(μg/g)and associated ratios of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	Cs	Rb	Ba	Th	U	Nb	Ta	Pb	Sr	Zr	Hf	Y	Sc	Cr	Co	Cu	Zr/Sc	Th/Sc	La/Th	La/Sc	Co/Th	Sr/Cu	Rb/Sr	Sr/Ba	Rb/K
羌科1井	QK1-73	27.8	209	218	17.7	2.77	18.8	1.41	22.9	163	129	3.79	30.0	16.0	55.9	14.8	37.4	8.06	1.11	2.44	2.70	0.84	4.36	1.28	0.75	0.0066
	QK1-158	15.4	132	319	13.4	2.45	15.4	1.14	17.7	211	121	3.73	27.3	10.7	51.2	11.9	27.1	11.3	1.25	2.70	3.38	0.89	7.79	0.63	0.66	0.0063
	QK1-210	19.5	157	221	15.2	2.73	16.6	1.25	14.3	252	119	3.58	29.9	13.8	58.0	14.5	29.0	8.62	1.10	2.55	2.80	0.95	8.69	0.62	1.14	0.0059
	QK1-271	19.5	172	247	14.8	2.85	17.3	1.23	11.0	259	140	4.30	30.9	15.8	47.0	14.1	29.4	8.86	0.94	2.70	2.53	0.95	8.81	0.66	1.05	0.0059
	QK1-411	16.4	165	345	14.1	2.79	16.1	1.25	12.4	232	120	3.88	30.9	15.0	76.0	15.6	29.9	8.00	0.94	2.84	2.67	1.11	7.76	0.71	0.67	0.0058
	QK1-467	13.2	126	813	13.0	2.90	15.5	1.21	87.8	863	106	3.56	28.9	11.5	63.1	16.5	36.4	9.22	1.13	2.91	3.29	1.27	23.7	0.15	1.06	0.0054
	QK1-558	11.0	114	372	11.4	2.33	13.9	1.04	12.9	198	129	3.87	24.4	9.77	51.7	8.77	61.3	13.2	1.17	2.89	3.37	0.77	3.23	0.58	0.53	0.0057
	QK1-663	15.2	163	339	14.2	2.76	15.1	1.15	13.6	170	122	3.97	28.0	15.2	62.9	14.1	29.6	8.03	0.93	2.64	2.47	0.99	5.74	0.96	0.50	0.0056
	QK1-751	7.9	97.8	686	10.4	2.16	13.0	0.96	10.6	299	105	2.74	25.5	10.2	54.9	10.6	22.9	10.3	1.02	3.00	3.06	1.02	13.1	0.33	0.44	0.0056
	QK1-843	13.3	147	309	12.8	2.43	14.0	1.02	14.5	163	106	2.78	28.8	15.3	65.8	16.0	34.1	6.93	0.84	2.82	2.36	1.25	4.78	0.90	0.53	0.0058
	QK1-951	14.6	153	378	15.0	2.88	13.2	0.97	11.5	220	137	4.34	26.6	15.6	70.0	15.6	27.4	8.78	0.96	2.52	2.42	1.04	8.03	0.70	0.58	0.0056
	QK1-1047	21.3	166	313	14.5	2.69	12.4	0.87	11.8	139	137	4.48	25.6	17.0	72.1	15.6	38.5	8.06	0.85	2.61	2.23	1.08	3.61	1.19	0.44	0.0055
胜利河西剖面	4-6B	1.80	23.9	80.5	3.38	0.68	3.59	0.34	6.13	114	33.9	0.96	7.038	3.60	55.6	4.47	4.19	9.40	0.94	3.03	2.84	1.32	27.1	0.21	1.14	0.0035
	4-1^*	6.51	119	254	14.0	2.40	21.7	1.75	5.00	68.9	228	5.05	26.7	15.8	111	20.1	25.8	14.4	0.89	2.98	2.64	1.44	2.67	1.73	0.27	0.0041
	4-4^*	7.88	130	302	14.0	2.10	23.1	1.75	12.8	59.0	241	5.43	26.6	20.6	115	25.5	48.1	11.7	0.68	2.84	1.93	1.82	1.23	2.20	0.20	0.0038
	4-5^*	8.73	127	349	14.2	2.18	22.5	1.82	11.2	66.3	203	4.99	27.3	18.0	112	29.5	21.7	11.3	0.79	3.00	2.37	2.08	3.06	1.92	0.19	0.0038
	4-7^*	8.28	128	315	14.3	2.13	24.9	1.85	5.87	76.8	231	5.23	23.9	18.9	123	22.7	65.5	12.2	0.76	2.84	2.15	1.59	1.17	1.67	0.24	0.0042
	4-8^*	11.2	164	356	14.8	2.41	25.1	1.99	9.75	63.3	241	5.45	18.8	22.1	126	21.7	30.9	10.9	0.67	2.87	1.92	1.47	2.05	2.59	0.18	0.0044
	4-9^*	9.04	146	335	14.3	2.30	22.7	1.76	12.4	59.7	222	5.16	18.0	18.9	124	21.0	19.5	11.7	0.76	2.95	2.23	1.47	3.06	2.45	0.18	0.0042
	4-10^*	10.6	156	356	15.2	2.20	23.6	1.66	9.29	64.7	210	5.29	17.6	21.0	137	19.7	20.6	10.0	0.72	2.74	1.98	1.30	3.14	2.41	0.18	0.0042
	4-11^*	7.98	134	268	12.8	1.96	21.8	1.61	4.62	88.5	206	4.51	22.3	16.5	119	18.0	41.6	12.5	0.78	2.73	2.12	1.41	2.13	1.51	0.33	0.0042
	4-13^*	7.64	116	239	12.0	2.14	18.3	1.51	6.96	117	179	4.13	23.0	17.5	115	21.7	31.8	10.2	0.69	3.18	2.18	1.81	3.68	0.99	0.49	0.0039
	4-10B	1.43	33.3	111	4.55	0.87	6.02	0.55	9.58	54.3	74.4	2.43	12.8	5.28	83.1	6.17	5.39	14.1	0.86	3.32	2.86	1.36	10.1	0.61	0.49	0.0035
	4-14^*	9.14	140	300	15.0	2.36	25.3	1.83	14.0	67.9	232	5.46	25.2	21.3	144	28.2	17.5	10.9	0.70	2.99	2.11	1.88	3.88	2.06	0.23	0.0041
	4-16^*	9.64	151	328	15.6	2.26	24.3	1.78	6.84	70.9	220	5.45	22.4	20.4	130	22.4	30.5	10.8	0.76	2.75	2.10	1.44	2.32	2.13	0.22	0.0042
	4-18^*	9.36	138	316	14.8	2.18	22.9	1.81	7.59	71.6	228	5.41	25.3	21.5	151	23.3	117	10.6	0.69	3.02	2.08	1.57	0.61	1.93	0.23	0.0041
	4-20^*	8.00	114	287	13.4	1.98	24.8	1.91	6.37	80.7	212	5.31	28.6	18.6	131	23.5	27.6	11.4	0.72	3.01	2.17	1.75	2.92	1.41	0.28	0.0036
胜利河西剖面	4-22^*	8.79	131	333	14.2	2.12	21.7	1.76	7.07	76.8	212	4.80	25.4	18.6	146	23.0	46.4	11.4	0.76	2.90	2.22	1.62	1.66	1.71	0.23	0.0039
	4-24^*	8.52	132	301	13.4	2.18	22.9	1.92	6.04	76.3	225	5.23	25.6	19.4	138	26.9	86.3	11.6	0.69	3.13	2.16	2.01	0.88	1.73	0.25	0.0041
	4-26	12.5	161	235	14.1	2.15	16.7	1.67	26.6	104	157	5.49	17.1	19.5	122	19.4	30.3	8.05	0.73	2.15	1.56	1.37	3.42	1.55	0.44	0.0049
	4-12B	4.59	78.5	225	9.77	1.67	13.7	1.32	21.7	97.6	137	4.71	18.4	12.1	112	15.9	47.0	11.2	0.80	2.72	2.19	1.62	2.08	0.80	0.43	0.0043
	4-28	7.47	104	208	11.0	1.80	13.8	1.29	8.85	143	135	4.97	19.8	16.3	119	12.6	12.8	8.28	0.67	2.65	1.79	1.15	11.2	0.73	0.69	0.0044
	4-14B	0.84	18.0	61.8	3.29	0.92	3.88	0.34	16.6	197	81.1	2.33	14.0	3.86	57.8	11.1	6.14	21.0	0.85	5.07	4.33	3.37	32.1	0.09	3.18	0.0045
	4-15B	2.70	54.0	196	9.36	1.55	11.2	1.01	4.79	65.8	165	5.71	21.3	10.8	116	9.76	4.40	15.3	0.87	2.91	2.53	1.04	15.0	0.82	0.34	0.0037
	4-30	10.2	140	322	15.7	2.53	20.8	2.26	12.1	71.4	178	6.29	21.6	20.4	152	20.2	56.7	8.74	0.77	2.40	1.84	1.29	1.26	1.97	0.22	0.0043
	4-18B	3.35	67.1	233	9.42	1.53	11.1	0.99	6.26	69.3	147	5.25	20.8	11.9	121	14.2	8.33	12.4	0.79	3.20	2.54	1.51	8.33	0.97	0.30	0.0038
	UCC	4.9	84	628	10.5	2.7	12	0.9	17	320	193	5.3	21	14	92	17.3	—	—	—	—	—	—	—	—	—	—

Appendix 3 Rare earth elements abundances(μg/g)and associated parameters of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	􀰐REE	LREE/HREE	La/Yb	(La/Yb)_N	δEu	δCe
羌科1井	QK1-73	43.2	80.3	9.47	35.8	6.98	1.26	5.84	0.99	5.34	0.97	3.02	0.54	3.34	0.49	198	8.62	12.9	8.72	0.59	0.92
	QK1-158	36.2	67.9	7.96	31.4	6.32	1.20	5.45	0.95	4.81	0.88	2.69	0.45	2.94	0.43	170	8.12	12.3	8.30	0.61	0.92
	QK1-210	38.7	72.2	8.71	33.9	6.60	1.28	5.92	1.02	5.40	0.97	2.99	0.53	3.14	0.48	182	7.89	12.3	8.31	0.61	0.91
	QK1-271	40.0	75.6	9.14	35.3	6.76	1.23	5.97	1.07	5.43	1.02	3.19	0.56	3.50	0.49	189	7.92	11.4	7.71	0.58	0.92
	QK1-411	40.1	71.3	8.83	34.0	6.51	1.21	5.48	0.95	4.97	1.03	2.91	0.51	3.19	0.48	181	8.30	12.6	8.47	0.60	0.87
	QK1-467	37.8	66.5	8.37	31.1	6.20	1.18	5.30	0.93	4.76	0.98	2.77	0.48	2.90	0.44	170	8.14	13.0	8.79	0.61	0.86
	QK1-558	32.9	60.3	7.18	27.9	5.48	1.02	4.98	0.85	4.28	0.79	2.46	0.41	2.67	0.38	152	8.02	12.3	8.31	0.59	0.90
	QK1-663	37.5	69.6	8.49	33.2	6.06	1.26	5.32	0.93	4.91	0.92	2.82	0.49	3.19	0.45	175	8.20	11.8	7.93	0.66	0.90
	QK1-751	31.2	60.5	7.18	28.4	5.58	1.07	4.81	0.89	4.39	0.88	2.39	0.38	2.70	0.38	151	7.96	11.6	7.79	0.62	0.94
	QK1-843	36.1	69.2	8.12	31.5	5.99	1.16	5.32	0.92	4.83	0.96	2.64	0.46	2.88	0.42	170	8.25	12.5	8.45	0.62	0.94
	QK1-951	37.8	70.9	8.50	32.4	6.20	1.25	5.34	0.91	4.76	0.88	2.65	0.42	2.73	0.43	175	8.67	13.8	9.33	0.65	0.92
	QK1-1047	37.9	71.5	8.51	32.7	6.30	1.42	5.46	0.93	4.87	0.88	2.68	0.40	2.79	0.42	177	8.59	13.6	9.16	0.72	0.92
胜利河西剖面	4-6B	10.3	21.8	2.28	9.0	1.91	0.46	2.01	0.25	1.50	0.28	0.74	0.11	0.72	0.09	51.4	8.03	14.3	9.62	0.71	1.04
	4-1^*	41.7	81.5	8.64	31.7	6.68	0.94	5.00	0.84	4.85	0.97	2.95	0.46	2.99	0.42	190	9.26	13.9	9.40	0.48	0.98
	4-4^*	39.8	77.2	8.48	30.3	5.58	0.79	4.99	0.78	4.33	0.93	2.84	0.46	2.99	0.44	180	9.13	13.3	8.97	0.45	0.97
	4-5^*	42.6	85.5	9.01	35.5	6.80	0.85	5.26	0.90	5.50	1.02	3.05	0.47	3.05	0.45	200	9.15	14.0	9.42	0.42	1.00
	4-7^*	40.6	85.6	9.30	33.1	6.24	0.74	4.97	0.85	4.89	0.93	2.59	0.42	3.03	0.41	194	9.71	13.4	9.03	0.39	1.02
	4-8^*	42.5	79.2	8.08	30.1	4.92	0.98	3.89	0.63	3.48	0.79	2.34	0.38	2.88	0.41	181	11.2	14.8	9.95	0.66	0.96
	4-9^*	42.2	78.6	7.85	26.6	5.05	1.01	3.63	0.61	3.64	0.69	2.09	0.34	2.50	0.35	175	11.7	16.9	11.4	0.69	0.97
	4-10^*	41.6	78.4	7.83	27.5	5.56	1.01	3.98	0.55	3.42	0.76	2.43	0.42	2.80	0.37	177	11.0	14.9	10.0	0.63	0.98
	4-11^*	34.9	68.5	7.77	28.6	5.50	1.16	4.84	0.81	4.56	0.97	2.58	0.41	2.78	0.39	164	8.45	12.6	8.46	0.67	0.96
	4-13^*	38.1	73.2	7.65	29.0	5.54	1.23	4.51	0.83	4.13	0.92	2.49	0.41	2.47	0.36	171	9.60	15.4	10.4	0.73	0.98
	4-10B	15.1	33.1	3.51	14.2	3.15	0.76	3.39	0.50	3.00	0.57	1.52	0.22	1.31	0.18	80.4	6.53	11.6	7.79	0.71	1.06
	4-14^*	44.9	79.5	8.31	29.4	5.31	1.11	4.71	0.73	4.47	0.97	2.56	0.48	3.15	0.41	186	9.64	14.3	9.61	0.67	0.92
	4-16^*	42.9	88.0	8.23	31.5	5.37	1.16	4.71	0.78	4.25	0.89	2.74	0.46	2.99	0.44	194	10.3	14.3	9.67	0.69	1.06
	4-18^*	44.7	85.1	8.99	34.9	6.15	1.28	5.19	0.94	5.05	0.97	2.89	0.46	3.16	0.43	200	9.49	14.1	9.54	0.68	0.97
	4-20^*	40.4	88.4	8.72	36.9	7.41	1.39	5.94	1.00	5.13	1.07	3.06	0.51	3.03	0.44	203	9.08	13.3	8.99	0.62	1.08
	4-22^*	41.2	85.5	8.75	36.0	6.45	1.31	5.52	0.94	4.52	0.94	2.88	0.49	3.01	0.42	198	9.58	13.7	9.23	0.66	1.03
	4-24^*	42.0	80.7	9.11	32.0	5.73	1.21	5.36	0.93	4.63	0.96	2.96	0.44	2.96	0.40	189	9.16	14.2	9.57	0.66	0.95
	4-26	30.5	60.6	6.01	22.4	3.98	0.90	3.83	0.54	3.53	0.76	2.32	0.36	2.44	0.30	138	8.84	12.5	8.44	0.69	1.02
胜利河西剖面	4-12B	26.6	57.5	6.00	23.3	4.75	1.01	4.74	0.68	4.12	0.81	2.29	0.33	2.16	0.28	135	7.73	12.3	8.28	0.64	1.05
	4-28	29.2	63.2	6.65	25.9	5.31	1.19	5.24	0.75	4.39	0.84	2.42	0.35	2.28	0.30	148	7.93	12.8	8.62	0.68	1.05
	4-14B	16.7	36.1	3.80	15.3	3.29	0.90	3.90	0.52	2.98	0.55	1.47	0.18	1.12	0.14	87.0	7.01	14.9	10.0	0.76	1.05
	4-15B	27.2	59.4	6.52	26.0	5.48	1.30	5.71	0.81	4.84	0.93	2.64	0.38	2.44	0.30	144	6.98	11.2	7.54	0.70	1.04
	4-30	37.6	73.9	7.33	26.7	4.82	0.99	4.46	0.68	4.41	0.94	2.83	0.43	2.98	0.40	168	8.84	12.6	8.52	0.64	1.01
	4-18B	30.2	65.2	6.92	26.7	5.54	1.21	5.46	0.78	4.78	0.92	2.57	0.37	2.33	0.30	153	7.75	12.9	8.73	0.66	1.05
	UCC	31.0	63.0	7.10	27.0	4.70	1.00	4.00	0.70	3.90	0.83	2.30	0.30	1.96	0.31	148	—	—	—	—	—
	PAAS	38.0	79.6	8.83	33.9	5.55	1.08	4.66	0.77	4.68	0.99	2.85	0.41	2.82	0.43	185	—	—	—	—	—
	球粒陨石	0.31	0.81	0.12	0.60	0.20	0.07	0.26	0.05	0.32	0.07	0.21	0.03	0.21	0.03	—	—	—	—	—	—

Appendix 3 Rare earth elements abundances(μg/g)and associated parameters of the Xiali Formation samples from Shenglihexi section and Well QK-1,North Qiangtang Depression

剖面	编号	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	􀰐REE	LREE/HREE	La/Yb	(La/Yb)_N	δEu	δCe
羌科1井	QK1-73	43.2	80.3	9.47	35.8	6.98	1.26	5.84	0.99	5.34	0.97	3.02	0.54	3.34	0.49	198	8.62	12.9	8.72	0.59	0.92
	QK1-158	36.2	67.9	7.96	31.4	6.32	1.20	5.45	0.95	4.81	0.88	2.69	0.45	2.94	0.43	170	8.12	12.3	8.30	0.61	0.92
	QK1-210	38.7	72.2	8.71	33.9	6.60	1.28	5.92	1.02	5.40	0.97	2.99	0.53	3.14	0.48	182	7.89	12.3	8.31	0.61	0.91
	QK1-271	40.0	75.6	9.14	35.3	6.76	1.23	5.97	1.07	5.43	1.02	3.19	0.56	3.50	0.49	189	7.92	11.4	7.71	0.58	0.92
	QK1-411	40.1	71.3	8.83	34.0	6.51	1.21	5.48	0.95	4.97	1.03	2.91	0.51	3.19	0.48	181	8.30	12.6	8.47	0.60	0.87
	QK1-467	37.8	66.5	8.37	31.1	6.20	1.18	5.30	0.93	4.76	0.98	2.77	0.48	2.90	0.44	170	8.14	13.0	8.79	0.61	0.86
	QK1-558	32.9	60.3	7.18	27.9	5.48	1.02	4.98	0.85	4.28	0.79	2.46	0.41	2.67	0.38	152	8.02	12.3	8.31	0.59	0.90
	QK1-663	37.5	69.6	8.49	33.2	6.06	1.26	5.32	0.93	4.91	0.92	2.82	0.49	3.19	0.45	175	8.20	11.8	7.93	0.66	0.90
	QK1-751	31.2	60.5	7.18	28.4	5.58	1.07	4.81	0.89	4.39	0.88	2.39	0.38	2.70	0.38	151	7.96	11.6	7.79	0.62	0.94
	QK1-843	36.1	69.2	8.12	31.5	5.99	1.16	5.32	0.92	4.83	0.96	2.64	0.46	2.88	0.42	170	8.25	12.5	8.45	0.62	0.94
	QK1-951	37.8	70.9	8.50	32.4	6.20	1.25	5.34	0.91	4.76	0.88	2.65	0.42	2.73	0.43	175	8.67	13.8	9.33	0.65	0.92
	QK1-1047	37.9	71.5	8.51	32.7	6.30	1.42	5.46	0.93	4.87	0.88	2.68	0.40	2.79	0.42	177	8.59	13.6	9.16	0.72	0.92
胜利河西剖面	4-6B	10.3	21.8	2.28	9.0	1.91	0.46	2.01	0.25	1.50	0.28	0.74	0.11	0.72	0.09	51.4	8.03	14.3	9.62	0.71	1.04
	4-1^*	41.7	81.5	8.64	31.7	6.68	0.94	5.00	0.84	4.85	0.97	2.95	0.46	2.99	0.42	190	9.26	13.9	9.40	0.48	0.98
	4-4^*	39.8	77.2	8.48	30.3	5.58	0.79	4.99	0.78	4.33	0.93	2.84	0.46	2.99	0.44	180	9.13	13.3	8.97	0.45	0.97
	4-5^*	42.6	85.5	9.01	35.5	6.80	0.85	5.26	0.90	5.50	1.02	3.05	0.47	3.05	0.45	200	9.15	14.0	9.42	0.42	1.00
	4-7^*	40.6	85.6	9.30	33.1	6.24	0.74	4.97	0.85	4.89	0.93	2.59	0.42	3.03	0.41	194	9.71	13.4	9.03	0.39	1.02
	4-8^*	42.5	79.2	8.08	30.1	4.92	0.98	3.89	0.63	3.48	0.79	2.34	0.38	2.88	0.41	181	11.2	14.8	9.95	0.66	0.96
	4-9^*	42.2	78.6	7.85	26.6	5.05	1.01	3.63	0.61	3.64	0.69	2.09	0.34	2.50	0.35	175	11.7	16.9	11.4	0.69	0.97
	4-10^*	41.6	78.4	7.83	27.5	5.56	1.01	3.98	0.55	3.42	0.76	2.43	0.42	2.80	0.37	177	11.0	14.9	10.0	0.63	0.98
	4-11^*	34.9	68.5	7.77	28.6	5.50	1.16	4.84	0.81	4.56	0.97	2.58	0.41	2.78	0.39	164	8.45	12.6	8.46	0.67	0.96
	4-13^*	38.1	73.2	7.65	29.0	5.54	1.23	4.51	0.83	4.13	0.92	2.49	0.41	2.47	0.36	171	9.60	15.4	10.4	0.73	0.98
	4-10B	15.1	33.1	3.51	14.2	3.15	0.76	3.39	0.50	3.00	0.57	1.52	0.22	1.31	0.18	80.4	6.53	11.6	7.79	0.71	1.06
	4-14^*	44.9	79.5	8.31	29.4	5.31	1.11	4.71	0.73	4.47	0.97	2.56	0.48	3.15	0.41	186	9.64	14.3	9.61	0.67	0.92
	4-16^*	42.9	88.0	8.23	31.5	5.37	1.16	4.71	0.78	4.25	0.89	2.74	0.46	2.99	0.44	194	10.3	14.3	9.67	0.69	1.06
	4-18^*	44.7	85.1	8.99	34.9	6.15	1.28	5.19	0.94	5.05	0.97	2.89	0.46	3.16	0.43	200	9.49	14.1	9.54	0.68	0.97
	4-20^*	40.4	88.4	8.72	36.9	7.41	1.39	5.94	1.00	5.13	1.07	3.06	0.51	3.03	0.44	203	9.08	13.3	8.99	0.62	1.08
	4-22^*	41.2	85.5	8.75	36.0	6.45	1.31	5.52	0.94	4.52	0.94	2.88	0.49	3.01	0.42	198	9.58	13.7	9.23	0.66	1.03
	4-24^*	42.0	80.7	9.11	32.0	5.73	1.21	5.36	0.93	4.63	0.96	2.96	0.44	2.96	0.40	189	9.16	14.2	9.57	0.66	0.95
	4-26	30.5	60.6	6.01	22.4	3.98	0.90	3.83	0.54	3.53	0.76	2.32	0.36	2.44	0.30	138	8.84	12.5	8.44	0.69	1.02
胜利河西剖面	4-12B	26.6	57.5	6.00	23.3	4.75	1.01	4.74	0.68	4.12	0.81	2.29	0.33	2.16	0.28	135	7.73	12.3	8.28	0.64	1.05
	4-28	29.2	63.2	6.65	25.9	5.31	1.19	5.24	0.75	4.39	0.84	2.42	0.35	2.28	0.30	148	7.93	12.8	8.62	0.68	1.05
	4-14B	16.7	36.1	3.80	15.3	3.29	0.90	3.90	0.52	2.98	0.55	1.47	0.18	1.12	0.14	87.0	7.01	14.9	10.0	0.76	1.05
	4-15B	27.2	59.4	6.52	26.0	5.48	1.30	5.71	0.81	4.84	0.93	2.64	0.38	2.44	0.30	144	6.98	11.2	7.54	0.70	1.04
	4-30	37.6	73.9	7.33	26.7	4.82	0.99	4.46	0.68	4.41	0.94	2.83	0.43	2.98	0.40	168	8.84	12.6	8.52	0.64	1.01
	4-18B	30.2	65.2	6.92	26.7	5.54	1.21	5.46	0.78	4.78	0.92	2.57	0.37	2.33	0.30	153	7.75	12.9	8.73	0.66	1.05
	UCC	31.0	63.0	7.10	27.0	4.70	1.00	4.00	0.70	3.90	0.83	2.30	0.30	1.96	0.31	148	—	—	—	—	—
	PAAS	38.0	79.6	8.83	33.9	5.55	1.08	4.66	0.77	4.68	0.99	2.85	0.41	2.82	0.43	185	—	—	—	—	—
	球粒陨石	0.31	0.81	0.12	0.60	0.20	0.07	0.26	0.05	0.32	0.07	0.21	0.03	0.21	0.03	—	—	—	—	—	—

Fig.6 Chondrite-normalized rare earth element distribution diagrams of the Xiali Formation from Shenglihexi section and Well QK-1,North Qiangtang Depression

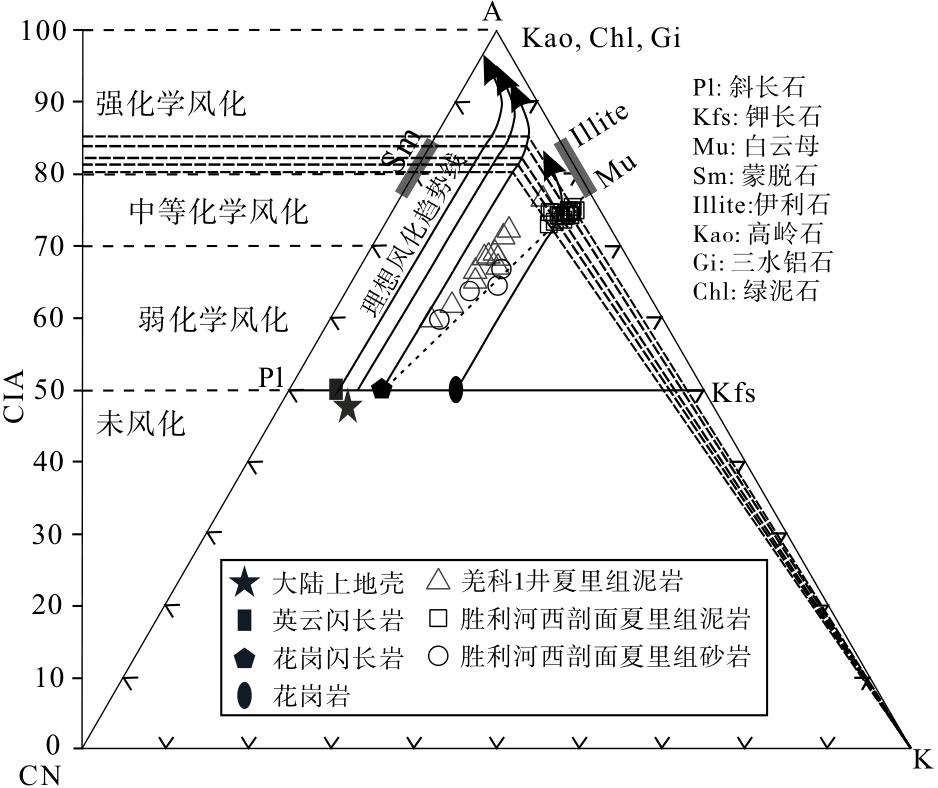

Fig.7 A-CN-K ternary diagram of the Xiali Formation from Shenglihexi section and Well QK-1, North Qiangtang Depression (after Nesbitt and Young,1982)

Fig.8 Binary diagrams for evaluating major factors affecting CIA values of the Xiali Formation clastic rocks from Shenglihexi section and Well QK-1,North Qiangtang Depression

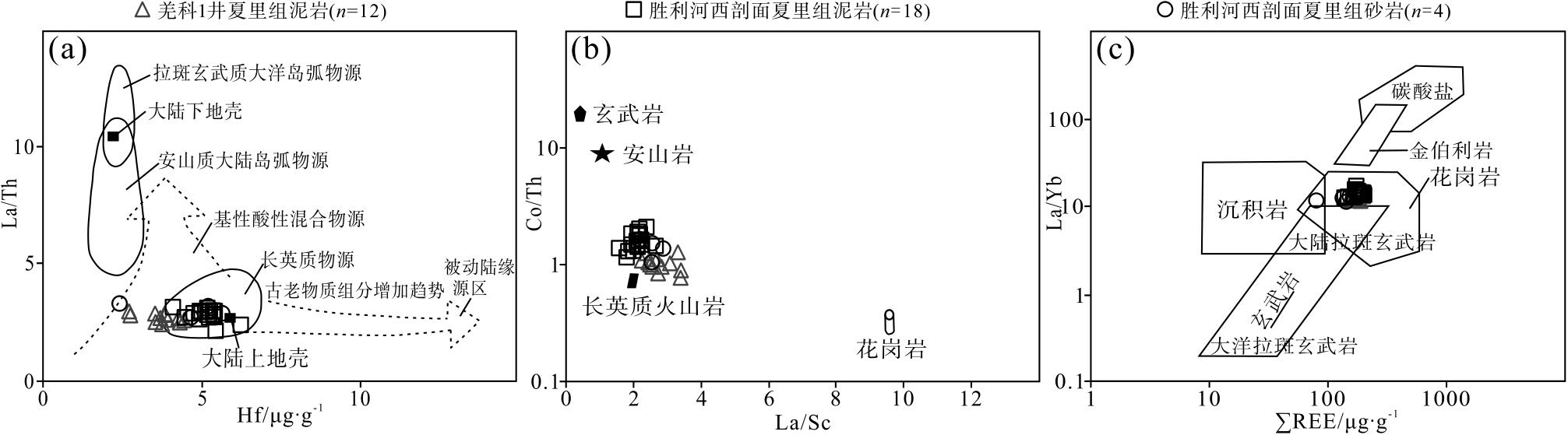

Fig.9 Provenance discrimination diagrams for the Xiali Formation clastic rocks from Shenglihexi section and Well QK-1, North Qiangtang Depression

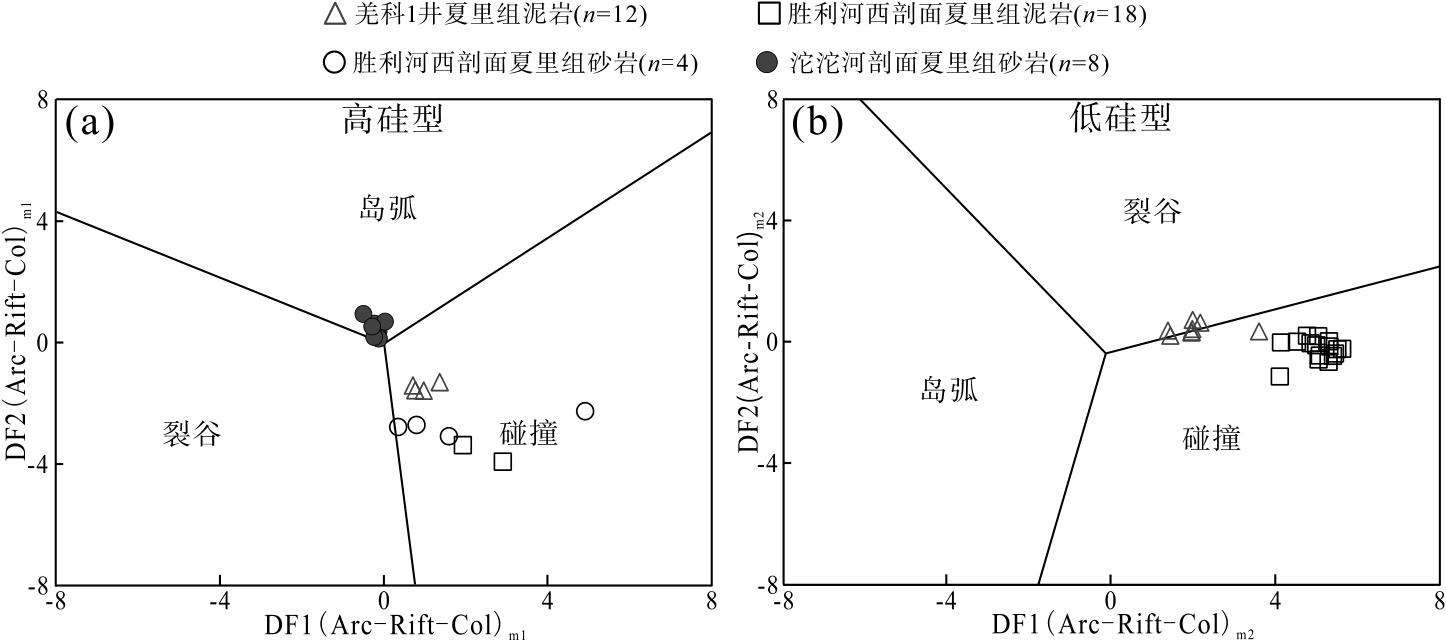

Fig.10 Multidimensional tectonic setting discrimination diagrams for the Xiali Formation siliciclastic rocks from Shenglihexi section and Well QK-1,North Qiangtang Depression

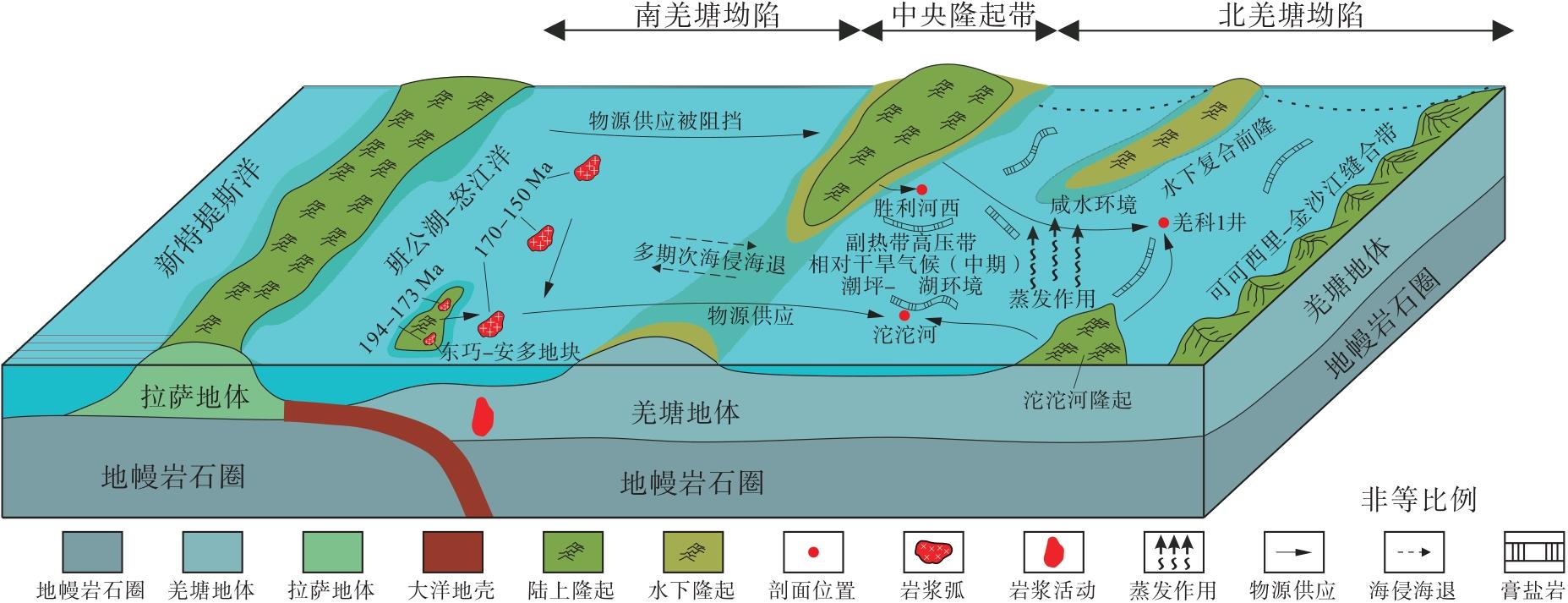

Fig.11 Tectonic evolution diagram of Qiangtang Basin during the deposition period of Middle Jurassic Xiali Formation(no-equal drawing)

References 81

[1]	陈骏, 汪永进, 陈旸, 刘连文, 季峻峰, 鹿化煜. 2001. 中国黄土地层Rb和Sr地球化学特征及其古季风气候意义. 地质学报, 75(2): 259-266.
	[Chen J, Wang Y J, Chen Y, Liu L W, Ji J F, Lu H Y. 2001. Rb and Sr geochemical characterization of the Chinese loess and its implications for palaeomonsoon climate. Acta Geologica Sinica, 75(2): 259-266]
[2]	程鑫, 吴汉宁, 刁宗宝, 王海军, 张晓东, 马轮, 周亚楠, 康伟伟, 计文化, 李荣社, 陈守建, 赵振明. 2012. 羌北地块中—晚侏罗世雁石坪群古地磁新结果. 地球物理学报, 55(10): 3399-3409.
	[Cheng X, Wu H N, Diao Z B, Wang H J, Zhang X D, Ma L, Zhou Y N, Kang W W, Ji W H, Li R S, Chen S J, Zhao Z M. 2012. New paleomagnetic result of the Middle-Late Jurassic rocks from northern Qiangtang Block,west China. Chinese Journal of Geophysics, 55(10): 3399-3409]
[3]	冯连君, 储雪蕾, 张启锐, 张同钢. 2003. 化学蚀变指数(CIA)及其在新元古代碎屑岩中的应用. 地学前缘, 10(4): 539-544.
	[Feng L J, Chu X L, Zhang Q R, Zhang T G. 2003. CIA(chemical index of alteration)and its applications in the Neoproterozoic clastic rocks. Earth Science Frontiers, 10(4): 539-544]
[4]	雷开宇, 刘池洋, 张龙, 吴柏林, 寸小妮, 孙莉. 2017. 鄂尔多斯盆地北部侏罗系泥岩地球化学特征: 物源与古沉积环境恢复. 沉积学报, 35(3): 621-636.
	[Lei K Y, Liu C Y, Zhang L, Wu B L, Cun X N, Sun L. 2017. Element geochemical characteristics of the Jurassic mudstones in the northern Ordos Basin: implications for tracing sediment sources and paleoenvironment restoration. Acta Sedimentologica Sinica, 35(3): 621-636]
[5]	李才, 翟庆国, 董永胜, 曾庆高, 黄小鹏. 2007. 青藏高原龙木错—双湖板块缝合带与羌塘古特提斯洋演化记录. 地质通报, 26(1): 13-21.
	[Li C, Zhai Q G, Dong Y S, Zeng Q G, Huang X P. 2007. Lungmu Co-Shanghu plate suture in the Qinghai-Tibet Plateau and records of the evolution of the Paleo-Tethys Ocean in the Qiangtang area,Tibet,China. Geological Bulletin of China, 26(1): 13-21]
[6]	李焕纪, 孙永刚, 郑近龙, 董峻麟, 张徐平. 2024. 青海沱沱河地区夏里组砂岩形成时代及物源区构造环境判别. 世界核地质科学, 41(5): 875-887.
	[Li H J, Sun Y G, Zheng J L, Dong J L, Zhang X P. 2024. Geochronology and tectonic environment of the provenance for Xiali Formation sandstone in Tuotuohe area,Qinghai Province. World Nuclear Geoscience, 41(5): 875-887]
[7]	李磊, 王忠伟, 王剑, 隋博雨, 戚俊. 2025a. 北羌塘坳陷西南缘中侏罗统夏里组泥页岩地球化学特征与沉积古环境分析. 地球化学, 54(4):626-643.
	[Li L, Wang Z W, Wang J, Sui B Y, Qi J. 2025a. Characteristics of mudstones and paleoenvironmental analysis of the Middle Jurassic Xiali Formation in the Southwestern margin of the Northern Qiangtang Depression. Geochimica, 54(4): 626-643]
[8]	李磊, 王忠伟, 王剑, 宋春彦, 占王忠, 李王鹏, 隋博雨, 戚俊. 2025b. 羌塘盆地中部下二叠统展金组海相细粒沉积岩古环境与有机质富集机制. 地质论评, 70(2): 1-18.
	[Li L, Wang Z W, Wang J, Song C Y, Zhan W Z, Li W P, Sui B Y, Qi J. 2025b. Paleoenvironment and organic matter enrichment mechanism of marine fine-grained sedimentary rocks in the Lower Permian Zhanjin Formation in central Qiangtang Basin. Geological Review, 70(2): 1-18]
[9]	李亚林, 王成善, 李永铁. 2008. 西藏羌塘盆地侏罗系膏盐岩与油气成藏. 石油学报, 29(2): 173-178. doi: 10.7623/syxb200802003
	[Li Y L, Wang C S, Li Y T. 2008. Characteristics of the Jurassic saline deposits and its significance to hydrocarbon accumulation in Qiangtang Basin of Tibet area. Acta Petrolei Sinica, 29(2): 173-178] doi: 10.7623/syxb200802003
[10]	李勇, 王成善, 伊海生, 石和, 林金辉, 朱利东, 李祥辉. 2001. 青藏高原中侏罗世—早白垩世羌塘复合型前陆盆地充填模式. 沉积学报, 19(1): 20-27.
	[Li Y, Wang C S, Yi H S, Shi H, Lin J H, Zhu L D, Li X H. 2001. Fill models of in the Qiangtang composite foreland basin in Qinghai-Xizang plateau,China. Acta Sedimentologica Sinica, 19(1): 20-27]
[11]	刘成林, 焦鹏程, 王弭力. 2010. 盆地钾盐找矿模型探讨. 矿床地质, 29(4): 581-592.
	[Liu C L, Jiao P C, Wang M L. 2010. A tentative discussion on exploration model for potash deposits in basins of China. Mineral Deposits, 29(4): 581-592]
[12]	潘佳秋, 宋春晖, 鲍晶, 马丽芳, 颜茂都, 方小敏, 应红, 杨一博. 2015. 羌塘盆地侏罗系元素地球化学特征与成盐层位分析. 地质学报, 89(11): 2152-2160.
	[Pan J Q, Song C H, Bao J, Ma L F, Yan M D, Fang X M, Ying H, Yang Y B. 2015. Geochemical characteristics and salt-forming analysis of Jurassic strata in the Qiangtang Basin. Acta Geologica Sinica, 89(11): 2152-2160]
[13]	秦何星, 陈雷, 卢畅, 胡月, 熊敏, 谭秀成, 计玉冰, 陈鑫, 王高翔. 2024. 上扬子南缘五峰组—龙马溪组页岩地球化学特征及其对风化、物源与构造背景的指示. 地质论评, 70(4): 1314-1334.
	[Qin H X, Chen L, Lu C, Hu Y, Xiong M, Tan X C, Ji Y B, Chen X, Wang G X. 2024. Geochemical characteristics of the Wufeng-Longmaxi Formations shale in the southern margin of the upper Yangtze area: implications for weathering,provenance and tectonic setting. Geological Review, 70(4): 1314-1334]
[14]	沈安江, 熊绍云, 胡安平, 张建勇, 许强, 付小东, 潘立银, 王鑫, 刘思琪, 李茜, 段军茂. 2024. 羌塘盆地中生代岩相古地理研究新进展. 海相油气地质, 29(1): 30-44.
	[Shen A J, Xiong S Y, Hu A P, Zhang J Y, Xu Q, Fu X D, Pan L Y, Wang X, Liu S Q, Li Q, Duan J M. 2024. New progress in the study of Mesozoic lithofacies and paleogeography in Qiangtang Basin. Marine Origin Petroleum Geology, 29(1): 30-44]
[15]	谭富文, 王剑, 王小龙, 杜佰伟. 2002. 西藏羌塘盆地—中国油气资源战略选区的首选目标. 沉积与特提斯地质, 22(1): 16-21.
	[Tan F W, Wang J, Wang X L, Du B W. 2002. The Qiangtang Basin in Xizang as the target area for the oil and gas resources in China. Sedimentary Geology and Tethyan Geology, 22(1): 16-21]
[16]	谭富文, 王剑, 付修根, 陈明, 杜佰伟. 2009. 藏北羌塘盆地基底变质岩的锆石SHRIMP年龄及其地质意义. 岩石学报, 25(1): 139-146.
	[Tan F W, Wang J, Fu X G, Chen M, Du B W. 2009. U-Pb zircon SHRIMP age of metamorphic rocks from the basement of the Qiangtang Basin,northern Tibet,and its geological significance. Acta Petrologica Sinica, 25(1): 139-146]
[17]	王成善, 伊海生, 李勇, 邓斌. 2001. 羌塘盆地地质演化与油气远景评价. 北京: 地质出版社,1-249.
	[Wang C S, Yi H S, Li Y, Deng B. 2001. The Geological Evolution and Prospective Oil and Gas Assessment of the Qiangtang Basin in Northern Tibetan Plateau. Beijing: Geological Publishing House,1-249]
[18]	王剑, 谭富文, 李亚林, 李永铁, 陈明, 王成善, 郭祖军, 王小龙, 杜佰伟, 朱忠发. 2004. 青藏高原重点沉积盆地油气资源潜力分析. 北京: 地质出版社,1-334.
	[Wang J, Tan F W, Li Y L, Li Y T, Chen M, Wang C S, Guo Z J, Wang X L, Du B W, Zhu Z F. 2004. The Potential of the Oil and Gas Resources in Major Sedimentary Basins on the QingHai-Xizang(Tibet)Plateau. Beijing: Geological Publishing House,1-334]
[19]	王剑, 丁俊, 王成善, 谭富文, 陈明, 胡平. 2009. 青藏高原油气资源战略选区调查与评价. 北京: 地质出版社,1-645.
	[Wang J, Ding J, Wang C S, Tan F W. 2009. Investigation and Evaluation of the Qinghai-Tibet Plateau Oil and Gas Resources Strategy Constituency. Beijing: Geological Publishing House,1-645]
[20]	王剑, 付修根. 2018. 论羌塘盆地沉积演化. 中国地质, 45(2): 237-259.
	[Wang J, Fu X G. 2018. Sedimentary evolution of the Qiangtang Basin. Geology in China, 45(2): 237-259]
[21]	王剑, 付修根, 沈利军, 谭富文, 宋春彦, 陈文彬. 2020. 论羌塘盆地油气勘探前景. 地质论评, 66(5): 1091-1113.
	[Wang J, Fu X G, Shen L J, Tan F W, Song C Y, Chen W B. 2020. Prospect of the potential of oil and gas resources in Qiangtang Basin,Xizang(Tibet). Geological Review, 66(5): 1091-1113]
[22]	王剑, 王忠伟, 付修根, 宋春彦, 谭富文, 韦恒叶. 2022. 青藏高原羌塘盆地首口油气科探井(QK-1)新发现. 科学通报, 67(3): 321-328.
	[Wang J, Wang Z W, Fu X G, Song C Y, Tan F W, Wei H Y. 2022. New discoveries on the first petroleum scientific drilling(QK-1)of the Qiangtang Basin,Tibetan plateau. Chinese Science Bulletin, 67(3): 321-328]
[23]	吴晨骁, 姚宗全, 德勒恰提·加娜塔依, 邓高山, 李天明, 赫佳, 刘宇, 王小红, 曙格拉·马哈西, 2022. 准噶尔盆地沙湾凹陷西斜坡二叠系佳木河组物源区构造背景分析. 古地理学报, 24(6): 1149-1161. doi: 10.7605/gdlxb.2022.06.081
	[Wu C X, Yao Z Q, Deleqiati J, Deng G S, Li T M, He J, Liu Y, Wang X H, Sugela M. 2022. Tectonic setting analysis of provenance area of the Permian Jiamuhe Formation on western slope of Shawan sag,Junggar Basin. Journal of Palaeogeography(Chinese Edition), 24(6): 1149-1161]
[24]	吴珍汉, 高锐, 卢占武, 叶培盛, 陆露, 殷裁云. 2014. 羌塘盆地结构构造与油气勘探方向. 地质学报, 88(6): 1130-1144.
	[Wu Z H, Gao R, Lu Z W, Ye P S, Lu L, Yin C Y. 2014. Structures of the Qiangtang Basin and its significance to oil-gas exploration. Acta Geologica Sinica, 88(6): 1130-1144] doi: 10.1111/acgs.2014.88.issue-s2 URL
[25]	夏国清, 伊海生, 黄华谷, 武向峰, 惠博. 2010. 藏北雁石坪地区夏里组米级沉积旋回及成因. 成都理工大学学报(自然科学版), 37(2): 133-139.
	[Xia G Q, Yi H S, Huang H G, Wu X F, Hui B. 2010. Meter-scale sedimentary cycles and their possible genetic mechanism of Middle Jurassic Xiali Formation in Yanshiping area,North Tibet, China. Journal of Chengdu University of Technology: Science & Technology Edition, 37(2): 133-139]
[26]	谢渊, 王剑, 刘家铎, 罗建宁, 张哨楠, 杨宝星, 李明辉. 2002. 羌塘盆地那底岗日地区中侏罗世层序地层与碳、氧、锶同位素响应. 沉积学报, 20(2): 188-196.
	[Xie Y, Wang J, Liu J D, Luo J N, Zhang S N, Yang B X, Li M H. 2002. Carbon,oxygen and strontium isotopic responses of carbonate rocks and the Middle Jurassic sequence stratigraphy in the Nadigangri area,Qiangtang Basin. Acta Sedimentologica Sinica, 20(2): 188-196]
[27]	熊盛青, 周道卿, 曹宝宝, 赵睿, 魏岩岩, 胡悦, 肖梦楚, 段宏伟, 胡夏炜, 郑宇舟. 2020. 羌塘盆地中央隆起带的重磁场证据及其构造意义. 地球物理学报, 63(9): 3491-3504. doi: 10.6038/cjg2020O0169
	[Xiong S Q, Zhou D Q, Cao B B, Zhao R, Wei Y Y, Hu Y, Xiao M C, Duan H W, Hu X W, Zheng Y Z. 2020. Characteristics of the central uplift zone in Qiangtang Basin and its tectonic implications: evidences from airborne gravity and magnetic data. Chinese Journal of Geophysics, 63(9): 3491-3504]
[28]	徐其辉, 苗忠英, 娄鹏程, 郑绵平, 陈文西. 2023. 北羌塘坳陷中侏罗统夏里组蒸发岩硫同位素特征及其钾盐成矿意义. 矿床地质, 42(2): 366-380.
	[Xu Q H, Miao Z Y, Lou P C, Zheng M P, Chen W X. 2023. Sulfur isotope characteristics of evaporite and its metallogenic significance of potassium salts from Middle Jurassic Xiali Formation in North Qiangtang depression. Mineral Deposits, 42(2): 366-380]
[29]	徐小涛, 邵龙义. 2018. 利用泥质岩化学蚀变指数分析物源区风化程度时的限制因素. 古地理学报, 20(3): 515-522. doi: 10.7605/gdlxb.2018.03.038
	[Xu X T, Shao L Y. 2018. Limiting factors in utilization of chemical index of alteration of mudstones to quantify the degree of weathering in provenance. Journal of Palaeogeography(Chinese Edition), 20(3): 515-522]
[30]	曾永耀, 潘佳秋, 马丽芳, 鲍晶, 宋春晖, 杨积伟. 2014. 羌塘盆地中—晚侏罗世夏里期气候演化特征及其成盐意义. 矿床地质, 33(5): 993-1002.
	[Zeng Y Y, Pan J Q, Ma L F, Bao J, Song C H, Yang J W. 2014. Palaeoclimatic evolution of Qiangtang Basin during Middle-Late Jurassic Xiali period and its salt-forming significance. Mineral Deposits, 33(5): 993-1002]
[31]	张春良, 沈玉林, 秦勇, 赵志刚, 谢国梁, 郑俊. 2016. 崖南凹陷Y1井崖城组泥岩微量元素特征及地质意义. 高校地质学报, 22(3): 512-518.
	[Zhang C L, Shen Y L, Qin Y, Zhao Z G, Xie G L, Zheng J. 2016. Distribution characteristics and geological significance of trace elements of mudstone of the Yacheng Formation,Well Y1,in Ya’nan Sag,Qiongdongnan Basin. Geological Journal of China Universities, 22(3): 512-518]
[32]	张妍, 吴欣松, 康积伦, 高岗, 黄志龙, 樊柯廷, 李杰, 马强, 张伟. 2024. 准东吉南凹陷二叠系芦草沟组烃源岩有机质富集机制. 天然气地球科学, 35(9): 1574-1589. doi: 10.11764/j.issn.1672-1926.2024.01.001
	[Zhang Y, Wu X S, Kang J L, Gao G, Huang Z L, Fan K T, Li J, Ma Q, Zhang W. 2024. Mechanism of organic matter enrichment in the Permian Lucaogou Formation,Ji’nan Sag,eastern Junggar Basin. Natural Gas Geoscience, 35(9): 1574-1589]
[33]	赵政璋, 李永铁, 叶和飞, 张昱文. 2001. 青藏高原大地构造特征及盆地演化. 北京: 科学出版社,1-439.
	[Zhao Z Z, Li Y T, Ye H F, Zhang Y W. 2001. Tectonic Characteristics and Basin Evolution of the Qinghai-Tibet Plateau. Beijing: Science Press,1-439]
[34]	郑绵平, 齐文, 张永生. 2006. 中国钾盐地质资源现状与找钾方向初步分析. 地质通报, 25(11): 1239-1246.
	[Zheng M P, Qi W, Zhang Y S. 2006. Present situation of potash resources and direction of potash search in China. Geological Bulletin of China, 25(11): 1239-1246]
[35]	周道卿, 曹宝宝, 赵睿, 胡悦, 魏岩岩, 肖梦楚, 段宏伟, 胡夏炜, 郑宇舟. 2021. 羌塘盆地高精度航空重磁调查对盆地基底性质与构造格局的启示. 地质学报, 95(11): 3178-3191.
	[Zhou D Q, Cao B B, Zhao R, Hu Y, Wei Y Y, Xiao M C, Duan H W, Hu X W, Zheng Y Z. 2021. High-precision airborne gravity and magnetic survey analysis of the Qiangtang Basin: implications for basin basement properties and tectonic framework. Acta Geologica Sinica, 95(11): 3178-3191]
[36]	周武, 韩雪, 龙宇, 岳龙, 徐安全, 陈仁. 2024. 黔中金沙地区早石炭世九架炉组地质特征及沉积环境讨论. 华东地质, 45(2): 187-197.
	[Zhou W, Han X, Long Y, Yue L, Xu A Q, Chen R. 2024. Discussion on the geological features and sedimentary environment of the Early Carboniferous Jiujialu Formation in Jinsha area of central Guizhou. East China Geology, 45(2): 187-197]
[37]	Allègre C J, Minster J F. 1978. Quantitative models of trace element behavior in magmatic processes. Earth and Planetary Science Letters, 38(1): 1-25. doi: 10.1016/0012-821X(78)90123-1 URL
[38]	Armstrong-Altrin J S, Lee Y I, Verma S P, Ramasamy S. 2004. Geochemistry of sandstones from the upper Miocene Kudankulam Formation,southern India: implications for provenance,weathering,and tectonic setting. Journal of Sedimentary Research, 74(2): 285-297. doi: 10.1306/082803740285 URL
[39]	Armstrong-Altrin J S, Lee Y I, Kasper-Zubillaga J J, Carranza-Edwards A. 2012. Geochemistry of beach sands along the Western Gulf of Mexico,Mexico: implication for provenance. Chemie Der Erde-Geochemistry, 72(4): 345-362. doi: 10.1016/j.chemer.2012.07.003 URL
[40]	Armstrong-Altrin J S, Machain-Castillo M L, Rosales-Hoz L, Carranza-Edwards A, Sanchez-Cabeza J A, Ruíz-Fernández A C. 2015. Provenance and depositional history of continental slope sediments in the Southwestern Gulf of Mexico unraveled by geochemical analysis. Continental Shelf Research, 95: 15-26. doi: 10.1016/j.csr.2015.01.003 URL
[41]	Bhatia M R. 1983. Plate tectonics and geochemical composition of sandstones. Journal of Geology, 91: 611-627. doi: 10.1086/628815 URL
[42]	Bhatia M R, Crook K A W. 1986. Trace element characteristics of greywackes and tectonic setting discrimination of sedimentary basins. Contributions to Mineralogy and Petrology, 92: 181-193. doi: 10.1007/BF00375292 URL
[43]	Condie K C. 1993. Chemical composition and evolution of the upper continental crust: Contrasting results from surface samples and shales. Chemical Geology, 104(1): 1-37. doi: 10.1016/0009-2541(93)90140-E URL
[44]	Cox R, Lowe D R, Cullers R L. 1995. The influence of sediment recycling and basement composition on evolution of mudrock chemistry in the southwestern United States. Geochimica et Cosmochimica Acta, 59(14): 2919-2940. doi: 10.1016/0016-7037(95)00185-9 URL
[45]	Deng T, Li Y, Wang Z J, Yu Q, Dong S L, Yan L, Hu W C, Chen B. 2019. Geochemical characteristics and organic matter enrichment mechanism of black shale in the Upper Triassic Xujiahe Formation in the Sichuan basin: implications for paleoweathering,provenance and tectonic setting. Marine and Petroleum Geology, 109: 698-716. doi: 10.1016/j.marpetgeo.2019.06.057
[46]	Ding L, Yang D, Cai F L, Pullen A, Kapp P, Gehrels G E, Zhang L Y, Zhang Q H, Lai Q Z, Yue Y H, Shi R D. 2013. Provenance analysis of the Mesozoic Hoh-Xil-Songpan-Ganzi turbidites in northern Tibet: implications for the tectonic evolution of the eastern Paleo-Tethys Ocean. Tectonics, 32(1): 34-48. doi: 10.1002/tect.v32.1 URL
[47]	Fang X M, Song C H, Yan M D, Zan J B, Liu C L, Sha J G, Zhang W L, Zeng Y Y, Wu S, Zhang D W. 2016. Mesozoic litho- and magneto-stratigraphic evidence from the central Tibetan Plateau for megamonsoon evolution and potential evaporites. Gondwana Research, 37(1): 110-129. doi: 10.1016/j.gr.2016.05.012 URL
[48]	Fedo C M, Nesbitt H W, Young G M. 1995. Unraveling the effects of potassium metasomatism in sedimentary rocks and paleosols,with implications for paleoweathering conditions and provenance. Geology, 23(10): 921-924. doi: 10.1130/0091-7613(1995)023<0921:UTEOPM>2.3.CO;2 URL
[49]	Floyd P A, Leveridge B E. 1987. Tectonic environment of the Devonian Gramscatho basin,south Cornwall: framework mode and geochemical evidence from turbiditic sandstones. Journal of the Geological Society, 144(4): 531-542. doi: 10.1144/gsjgs.144.4.0531 URL
[50]	Gao Y, Fu X G, Li Y, Wan Y L, Wang Z W, Song C Y, Shen H L, Lin F. 2020. Demise of the Middle Jurassic carbonate platform: responses to sea-level fall in the Qiangtang Basin,eastern Tethys. Geological Journal, 55(12): 7935-7952. doi: 10.1002/gj.v55.12 URL
[51]	Guo Y L, Yang S Y, Su N, Li C, Yin P, Wang Z B. 2018. Revisiting the effects of hydrodynamic sorting and sedimentary recycling on chemical weathering indices. Geochimica et Cosmochimica Acta, 227(1): 48-63. doi: 10.1016/j.gca.2018.02.015 URL
[52]	Herron M M. 1988. Geochemical classification of terrigenous sands and shales from core or log data. Journal of Sedimentary Petrology, 58: 820-829.
[53]	Hessler A M, Zhang J Y, Covault J, Ambrose W. 2017. Continental weathering coupled to Paleogene climate changes in North America. Geology, 45(10): 911-914. doi: 10.1130/G39245.1 URL
[54]	Hu X M, Ma A L, Xue W W, Garzanti E, Cao Y, Li S M, Sun G Y, Lai W. 2022. Exploring a lost ocean in the Tibetan Plateau: birth,growth,and demise of the Bangong-Nujiang Ocean. Earth-Science Reviews, 229: 104031. doi: 10.1016/j.earscirev.2022.104031 URL
[55]	Kapp P, Yin A, Manning C E, Harrison T M, Taylor M H, Ding L. 2003. Tectonic evolution of the early Mesozoic blueschist-bearing Qiangtang metamorphic belt,central Tibet. Tectonics, 22(4): 17.
[56]	Korsch R J. 1993. Geochemical,petrographic and grain-size variations within single turbidite beds. Sedimentary Geology, 83(1): 15-35. doi: 10.1016/0037-0738(93)90180-D URL
[57]	Li S, Ding L, Guilmette C, Fu J J, Xu Q, Yue Y H, Pinto R H. 2017. The subduction-accretion history of the Bangong-Nujiang Ocean: constraints from provenance and geochronology of the Mesozoic strata near Gaize,central Tibet. Tectonophysics, 702: 42-60. doi: 10.1016/j.tecto.2017.02.023 URL
[58]	Ma P F, Wang L C, Wang C S, Wu X H, Wei Y S. 2015. Organic-matter accumulation of the lacustrine Lunpola oil shale,central Tibetan Plateau: controlled by the paleoclimate,provenance,and drainage system. International Journal of Coal Geology, 147-148: 58-70. doi: 10.1016/j.coal.2015.06.011 URL
[59]	McLennan S M. 1993. Weathering and global denudation. The Journal of Geology, 101: 295-303. doi: 10.1086/648222 URL
[60]	McLennan S M, Hemming S, McDanniel D K, Hanson G N. 1993. Geochemical approaches to sedimentation,provenance,and tectonics. Geological Society of America Special Papers, 284: 21-40.
[61]	Moradi A V, Sarı A, Akkaya P. 2016. Geochemistry of the Miocene oil shale(Hançili Formation)in the Çankırı-Çorum Basin,Central Turkey: implications for paleoclimate conditions,source area weathering,provenance and tectonic setting. Sedimentary Geology, 341: 289-303. doi: 10.1016/j.sedgeo.2016.05.002 URL
[62]	Nesbitt H W, Young G M. 1982. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites. Nature, 299: 715-717. doi: 10.1038/299715a0
[63]	Price J R, Velbel M A. 2003. Chemical weathering indices applied to weathering profiles developed on heterogeneous felsic metamorphic parent rocks. Chemical Geology, 202: 397-416. doi: 10.1016/j.chemgeo.2002.11.001 URL
[64]	Rieu R, Allen P A, Plötze M, Pettke T. 2007. Climatic cycles during a Neoproterozoic“snowball”glacial epoch. Geology, 35(4): 299-302. doi: 10.1130/G23400A.1 URL
[65]	Roddaz M, Viers J, Brusset S, Baby P, Boucayrand C, Hérail G. 2006. Controls on weathering and provenance in the Amazonian foreland basin: insights from major and trace element geochemistry of Neogene Amazonian sediments. Chemical Geology, 226(1): 31-65. doi: 10.1016/j.chemgeo.2005.08.010 URL
[66]	Roser B P, Korsch R J. 1988. Provenance signatures of sandstone-mudstone suites determined using discriminant function analysis of major element data. Chemical Geology, 67(1-2): 119-139. doi: 10.1016/0009-2541(88)90010-1 URL
[67]	Ross D J K, Bustin R M. 2009. Investigating the use of sedimentary geochemical proxies for paleoenvironment interpretation of thermally mature organic-rich strata: examples from the Devonian-Mississippian shales,Western Canadian Sedimentary Basin. Chemical Geology, 260(1-2): 1-19. doi: 10.1016/j.chemgeo.2008.10.027 URL
[68]	Roy D K, Roser B P. 2013. Climatic control on the composition of Carboniferous-Permian Gondwana sediments,Khalaspir Basin,Bangladesh. Gondwana Research, 23(3): 1163-1171. doi: 10.1016/j.gr.2012.07.006 URL
[69]	Rudnick R L, Gao S. 2003. Composition of the continental crust. In: Treatise on Geochemistry. UK: Pergamon,1-64.
[70]	Shields G, Stille P. 2001. Diagenetic constraints on the use of cerium anomalies as palaeoseawater redox proxies: an isotopic and REE study of Cambrian phosphorites. Chemical Geology, 175(1): 29-48. doi: 10.1016/S0009-2541(00)00362-4 URL
[71]	Taylor S R, Mclennan S M. 1985. The continental crust: its composition and evolution. The Journal of Geology, 94(4): 57-72.
[72]	Verma S P, Armstrong-Altrin J S. 2013. New multi-dimensional diagrams for tectonic discrimination of siliciclastic sediments and their application to Precambrian basins. Chemical Geology, 355: 117-133. doi: 10.1016/j.chemgeo.2013.07.014 URL
[73]	Warren J K. 2010. Evaporites through time: tectonic,climatic and eustatic controls in marine and nonmarine deposits. Earth-Science Reviews, 98(3-4): 217-268. doi: 10.1016/j.earscirev.2009.11.004 URL
[74]	Wang Z W, Wang J, Fu X G, Zhan W Z, Armstrong-Altrin J S, Yu F, Feng X L, Song C Y, Zeng S Q. 2018. Geochemistry of the Upper Triassic black mudstones in the Qiangtang Basin,Tibet: implications for paleoenvironment,provenance,and tectonic setting. Journal of Asian Earth Sciences, 160: 118-135. doi: 10.1016/j.jseaes.2018.04.022 URL
[75]	Wang Z W, Wang J, Fu X G, Feng X L, Armstrong-Altrin J S, Zhan W Z, Wan Y L, Song C Y, Ma L, Shen L J. 2019. Sedimentary successions and onset of the Mesozoic Qiangtang rift basin(northern Tibet),Southwest China: insights on the Paleo- and Meso-Tethys evolution. Marine and Petroleum Geology, 102: 657-679. doi: 10.1016/j.marpetgeo.2019.01.017 URL
[76]	Wang Z W, Zhan W Z, Wang J, Peng Q H, Wei W, Wang D, Ma Q L, Song C Y, Feng X L. 2023. Geochemistry and zircon geochronology of the Late Triassic volcanic-sedimentary successsions in northern Tibet: implications for the provenance and tectonic evolution of the Mesozoic Qiangtang Basin. Gondwana Research, 117: 321-343. doi: 10.1016/j.gr.2023.02.005 URL
[77]	Wei W, Algeo T J. 2020. Elemental proxies for paleosalinity analysis of ancient shales and mudrocks. Geochimica et Cosmochimica Acta, 287: 341-366. doi: 10.1016/j.gca.2019.06.034
[78]	Yan D T, Chen D Z, Wang Q C, Wang J G. 2010. Large-scale climatic fluctuations in the latest Ordovician on the Yangtze block,South China. Geology, 38(7): 599-602. doi: 10.1130/G30961.1 URL
[79]	Yan M D, Zhang D W, Fang X M, Ren H D, Zhang W L, Zan J B, Song C H, Zhang T. 2016. Paleomagnetic data bearing on the Mesozoic deformation of the Qiangtang block: implications for the evolution of the Paleo- and Meso-Tethys. Gondwana Research, 39(1): 292-316. doi: 10.1016/j.gr.2016.01.012 URL
[80]	Yang J H, Cawood P A, Du Y S, Li W Q, Yan J X. 2016. Reconstructing Early Permian tropical climates from chemical weathering indices. Geological Society of America Bulletin, 128(5): 739-751. doi: 10.1130/B31371.1 URL
[81]	Zhu D C, Zhao Z D, Niu Y L, Dilek Y, Mo X X. 2011. Lhasa terrane in southern Tibet came from Australia. Geology, 39(8): 727-730. doi: 10.1130/G31895.1 URL

Please choose a citation manager

Content to export
